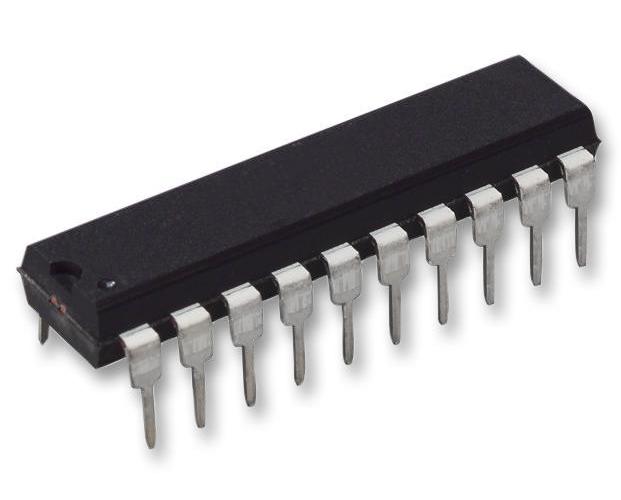

Buffer/Driver/Receiver - SN74HCT244N
Buffer/Driver/Receiver - SN74HCT244N
Regular price
£1.89 GBP
Regular price
Sale price
£1.89 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The SN74HCT244N is an Octal Buffer and Line Driver designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers and bus-oriented receivers and transmitters. The HCT244 device is organized as two 4-bit buffers/drivers with separate output-enable (OE)\ inputs. When (OE)\ is low, the device passes non-inverted data from the A inputs to the Y outputs. When (OE)\ is high, the outputs are in the high-impedance state.
Features
- 3-state outputs drive bus lines or buffer memory address registers
- High-current outputs drive up to 15 LSTTL loads
- Inputs are TTL-voltage compatible
- 80μA Maximum low power consumption ICC
- 13ns Typical tpd
- ±6mA Output drive at 5V
- 1μA Maximum low input current
| Specifications | |
|---|---|
| Logic Device Type | Buffer, Non Inverting |
| Logic Family / Base Number | 74HCT244 |
| Logic Case Style | DIP |
| No. of Pins | 20Pins |
| Supply Voltage Min | 4.5V |
| Supply Voltage Max | 5.5V |
| Logic IC Family | 74HCT |
| Logic IC Base Number | 74244 |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Country of Origin: | Malaysia |
