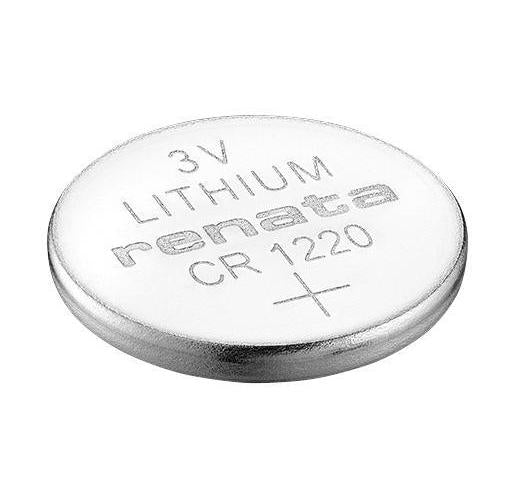

CR1220 3V Lithium Button Cell Battery - CR 1220 MFR (1BL)
CR1220 3V Lithium Button Cell Battery - CR 1220 MFR (1BL)
Regular price
£4.99 GBP
Regular price
Sale price
£4.99 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The CR 1220 MFR (1BL) is a 1220 3V/40mAh Non-rechargeable Battery features a lithium manganese dioxide technology and pressure contact terminals. Discharge current for a yield of 70% of the nominal capacity with cut-off capacity voltage of 2V at 23°C. Excellent solder ability to solder-plated areas. Suitable for wave-soldering. Solder contacts stainless steel AISI 301, thickness 0.15mm. Tin-plated solder area lead-free (>99.9% Sn) plated throughout, thickness minimum 2.5μm. Solder ability according to MIL-STD 883C, method 2003.3.
Features
- 0.1mA Standard discharge current
- <1%/year Self discharge at 23°C
- -30 to 70°C Operating temperature range
| Specifications | |
|---|---|
| Battery Voltage | 3V |
| Battery Size Code | 1220 |
| Battery Technology | Lithium Manganese Dioxide |
| Battery Capacity | 40mAh |
| Battery Terminals | Pressure Contact |
| External Diameter | 12.5mm |
| External Height | 2mm |
| External Depth | 2mm |
| Pack Quantity | 1 |
| Weight | 0.8g |
| Battery IEC Code | CR1220 |
| Battery NEDA Code | 5012LC |
| Product Contents: | Battery only |
| Important Product Warning: | Coin batteries must be kept out of reach of children, consult a doctor immediately if swallowed. |
| Country of Origin: | Japan |
