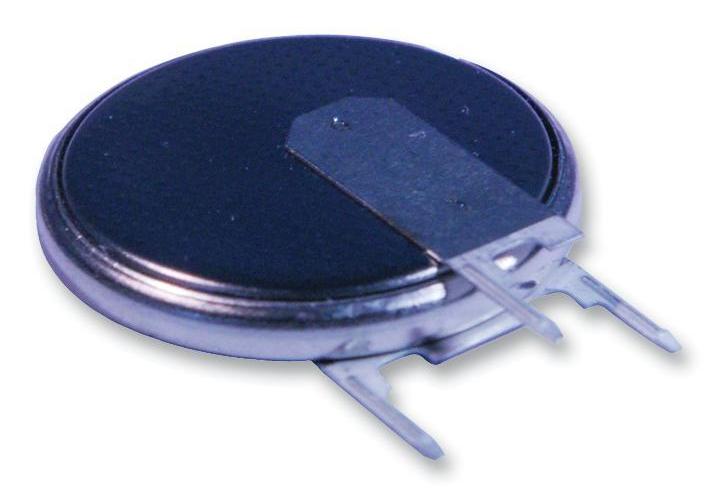

CR2032 3V Lithium Button Cell, 3-Pin Vertical PCB Mount - CR 2032 MFR RV
CR2032 3V Lithium Button Cell, 3-Pin Vertical PCB Mount - CR 2032 MFR RV
Regular price
£3.09 GBP
Regular price
Sale price
£3.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The CR 2032 MFR RV is a 2032 3V/225mAh Non-rechargeable Battery, lithium manganese dioxide technology with single cell, PCB-pin terminal, three-pin standard tabbed coin cells for vertical mounting on PCBs, excellent solder ability to solder-plated areas, tin-plated solder area plated throughout, thickness minimum 2.5μm, solder ability according to MIL-STD 883C, method 2003.3.
Features
- Less than 1% per year at 23°C self discharge
- Solder contacts stainless steel AISI 301, thickness 0.15mm
- Suitable for wave-soldering
- 0.4mA Standard discharge current
- -30 to 60°C Operating temperature range
| Specifications | |
|---|---|
| Battery Voltage | 3V |
| Battery Size Code | 2032 |
| Battery Technology | Lithium Manganese Dioxide |
| Battery Capacity | 225mAh |
| Battery Terminals | PCB Pins |
| External Diameter | 20mm |
| External Height | 3.2mm |
| External Width | 21mm |
| External Depth | 3.2mm |
| Pack Quantity | 1 |
| Weight | 2.8g |
| Battery IEC Code | CR2032 |
| Battery NEDA Code | 5004LC |
| Product Contents: | Battery only |
| Important Product Warning: | Coin batteries must be kept out of reach of children, consult a doctor immediately if swallowed. |
| Country of Origin: | Indonesia |
