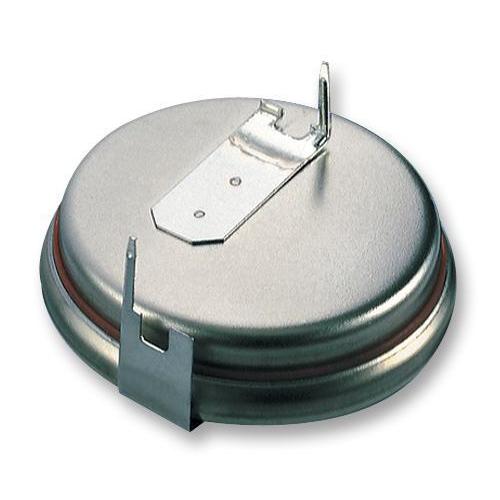

CR2477 3V Lithium Button Cell Battery, 2-Pin Horizontal PCB Mount - CR2477 NFH-LF
CR2477 3V Lithium Button Cell Battery, 2-Pin Horizontal PCB Mount - CR2477 NFH-LF
Regular price
£7.79 GBP
Regular price
Sale price
£7.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The CR2477 NFH-LF is a 2477 3V/950mAh button-cell Non-rechargeable Battery features a lithium manganese dioxide technology with single cell and PCB pins terminals. Two-pin standard tabbed coin cells for vertical mounting on PCBs. Excellent solder ability to solder-plated areas. Suitable for wave-soldering. Solder contacts stainless steel AISI 301, thickness 0.15mm. Tin-plated solder area lead-free (>99.9% Sn) plated throughout, thickness minimum 2.5μm. Solder ability according to MIL-STD 883C, method 2003.3.
Features
- Excellent solderability to solder-plated areas
- Suitable for wave-soldering
| Specifications | |
|---|---|
| Battery Voltage | 3V |
| Battery Size Code | 2477 |
| Battery Technology | Lithium Manganese Dioxide |
| Battery Capacity | 950mAh |
| Battery Terminals | PCB Pins |
| External Diameter | 24.5mm |
| External Height | 8.5mm |
| External Width | 24.7mm |
| External Depth | 20.4mm |
| Pack Quantity | 1 |
| Weight | 8.4g |
| Battery IEC Code | CR2477 |
| Important Product Warning: | Coin batteries must be kept out of reach of children, consult a doctor immediately if swallowed. |
| Country of Origin: | Switzerland |
