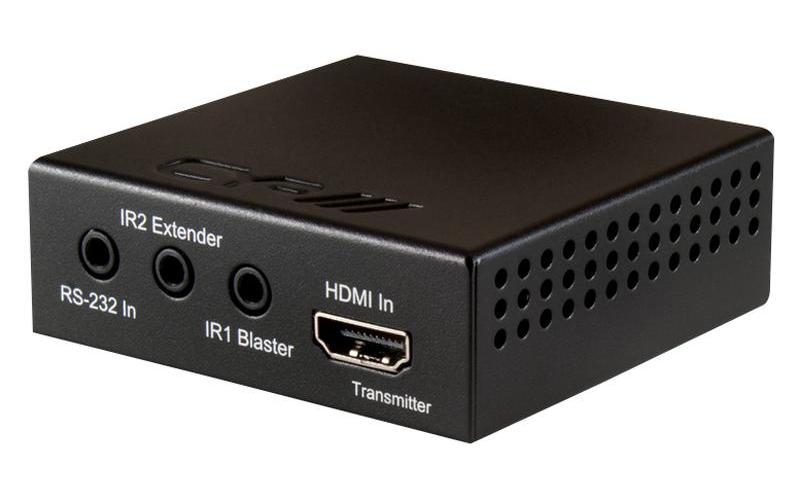

Cyp - PU-515PL-TX - Hdbaset Lite Tx Poc,2-way Ir,60m
Cyp - PU-515PL-TX - Hdbaset Lite Tx Poc,2-way Ir,60m
Regular price
£139.09 GBP
Regular price
Sale price
£139.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Transmit uncompressed HDMI signals over a single Cat5e/6/7 cable up to a distance of 60m. Features RS232, 2 way IR control and Power over Cable (PoC) functionality. Transmitter unit only, receiver required to complete setup.
Product Info
- HDMI 1.4 (with 3D), DVI and HDCP 2.2 compliant
- Complies with HDBaseTTM Lite specification
- Resolution support: VGA to WUXGA; 480i to 1080p, 4K Ultra-HD & 4K/2K @24/25/30Hz and 4K Ultra-HD & 4K/2K @60Hz
- Display support dependent upon EDID settings of output display
- High Definition Audio supported: LPCM 7.1 channel, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
- HDMI input/output up to 15m with 8-bit deep colour or 10m with 12-bit deep colour
- 3.5mm Stereo jack connections for RS232 and IR extender/blaster
- Inputs: 1x HDMI, 1x RS232 and 1x IR transmitter
- Outputs: 1x RJ45 socket and 1x IR emitter
- Powered by mains adaptor
| Details | |
|---|---|
| Plug Type: | UK |
| External Width: | 75 mm |
| External Length / Height: | 24 mm |
| External Depth: | 72 mm |
| Product Contents: | Transmitter, ac adaptor and user guide |
| Country of Origin: | Taiwan |
