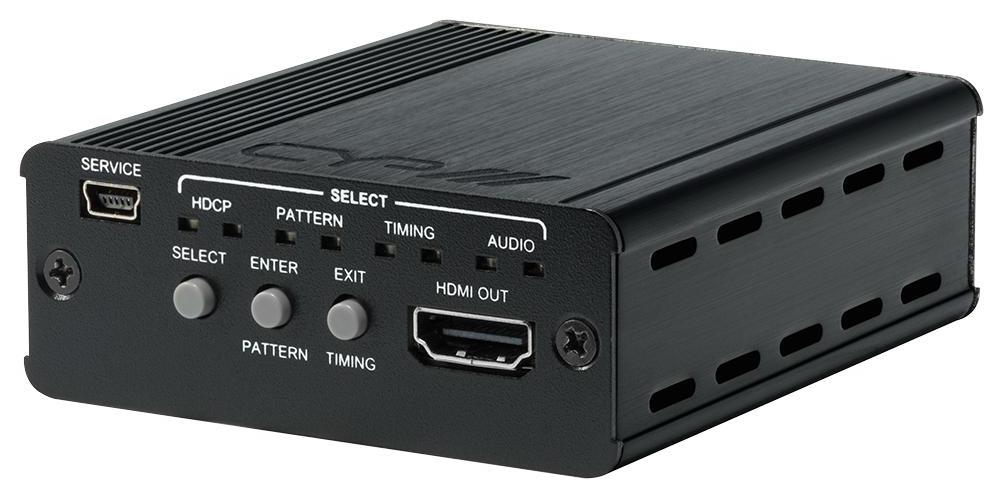

Cyp - XA-2 - Hdmi Pattern Generator 4k
Cyp - XA-2 - Hdmi Pattern Generator 4k
Regular price
£243.89 GBP
Regular price
Sale price
£243.89 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The XA-2 is an advanced but compact pattern generator for testing and troubleshooting HDMI devices. It features 6 resolution settings covering 4K Ultra HD and Full HD resolutions, 4 test patterns, HDCP (1.4, 2.2 and non-HDCP) and 3 audio settings, each providing a large array of test signals. With simple controls via buttons on the front panel and LED indicators for quick viewing of the current status, this pattern generator is an ideal tool for any professional AV integrator.
Product Info
- HDMI 2.0, HDCP 2.2 and DVI compliant
- Generates HDMI resolutions up to 6Gbps 4K2K @60Hz
- Resolutions supported: 720p @60Hz, 1080p @60Hz and 4K @30/60Hz
- Supports external analogue stereo and optical digital audio inputs
- Video bandwidth support: 18Gbps
- Inputs: 2x RCA, 1x Toslink, 1x USB Mini B
- Output: 1x HDMI
- PSU: 5V/ 2.6A (supplied)
- Dimensions (WxHxD): 87x30x78mm
- Weight: 202g
| Details | |
|---|---|
| No. of Channels: | 1 Channel |
| Signal Generator Type: | Pattern |
| Bandwidth: | 600MHz |
| Plug Type: | UK |
| Country of Origin: | Taiwan |
