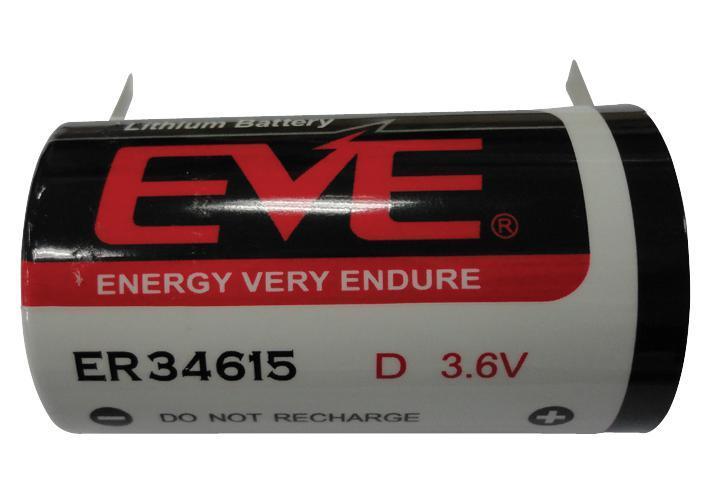

D 19Ah 3.6V Lithium Thionyl Chloride Battery, Solder Tagged - ER34615T
D 19Ah 3.6V Lithium Thionyl Chloride Battery, Solder Tagged - ER34615T
Regular price
£27.89 GBP
Regular price
Sale price
£27.89 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The ER34615T is a D 3.6V/19Ah cylindrical-cell bobbin type Non-rechargeable Battery features a lithium thionyl chloride technology and solder tab terminals. High and stable operating voltage. High minimum voltage during pulsing. Low self discharge rate (less than 1% after 1 year of storage at 25°C). Nominal capacity at 2mA, 25°C, 2V cut-off. The capacity restored by the cell varies according to current drain, temperature and cut-off voltage. Bobbin style lithium thionyl chloride cells are maximised for long life. They offer very high energy density, low self discharge and a long storage life and are particularly suited to low current applications.
Features
- Stainless steel container
- Hermetic glass-to-metal sealing
- Non-flammable electrolyte
- Pulse capability typical up to 400mA
- -60 to 85°C Operating temperature range
| Specifications | |
|---|---|
| Battery Voltage | 3.6V |
| Battery Size Code | D |
| Battery Technology | Lithium Thionyl Chloride |
| Battery Capacity | 19Ah |
| Battery Terminals | Solder Tab |
| External Diameter | 33.1mm |
| External Height | 61.5mm |
| Pack Quantity | 1 |
| Weight | 100g |
| Important Product Warning: | Fire, explosion and severe burn hazard. Do not recharge, crush, disassemble, heat above 100 C, incinerate or expose contents to water. |
| Country of Origin: | China |
