Digital Tachometer - MP780522
Digital Tachometer - MP780522
Regular price
£41.29 GBP
Regular price
Sale price
£41.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

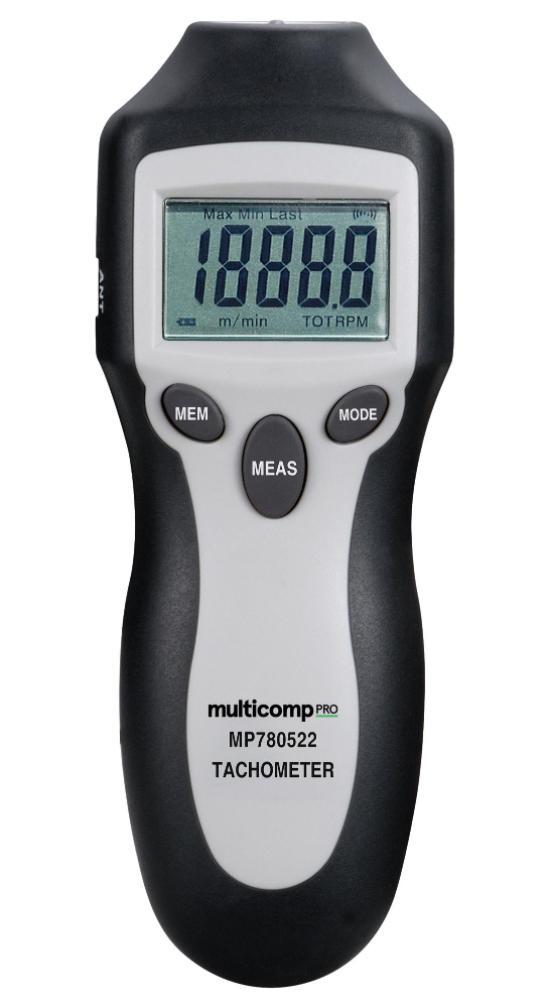

MP780522 is a digital tachometer, which can provide fast and accurate non-contact RPM and surface speed measurements of rotating objects. This tachometer uses the CPU, photo-electrical and junction laser techniques for one combined instrument.
Features
- Two test modes - rotate speed mode (RPM) and count mode (REV)
- Wide measurement range and high resolution
- High visible digital 5-digit LCD and backlight display
- Built-in memory recalls max, min and last value stored
- ±(0.05%+1 digits) accuracy
- 2 to 99,999 RPM range
- 1 to 99,999 REV range
- 0.5 sec sampling time (over 120 RPM)
- 50mm to 500mm detecting distance
- Quartz crystal time base
- Approx. 45mA power consumption
- 9V power supply (PP3 battery supplied, or 6V exterior DC)
- 0°C to 50°C operating temperature
- Dimensions - 160mm x 58mm x 39mm
- Weight - 151g
| Specifications | |
|---|---|
| RPM Measuring Range | 2RPM to 99999RPM |
| Accuracy % | 0.05% |
| External Height | 160mm |
| Sampling Time | 500ms |
| External Width | 58mm |
| Detecting Distance Max | 500mm |
| External Depth | 39mm |
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 50°C |
| Country of Origin: | China |
