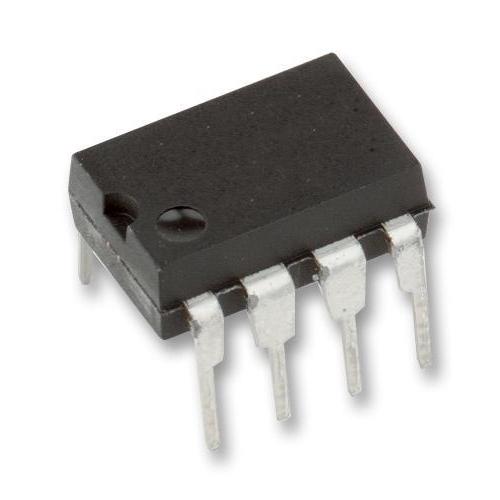

Driver, Peripheral, 75452, DIP8 - SN75452BP
Driver, Peripheral, 75452, DIP8 - SN75452BP
Regular price
£3.09 GBP
Regular price
Sale price
£3.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The SN75452BP is a dual very high speed high-current Peripheral Driver designed for use in systems that employ TTL logic. This family is functionally interchangeable and the speed of the devices is equal to that of the SN75450 family and the parts are designed to ensure freedom from latch-up. Diode-clamped inputs simplify circuit design. Typical applications include high-speed logic buffers, power drivers, relay drivers, lamp drivers, MOS drivers, line drivers and memory drivers.
Features
- High-voltage outputs
- No output Latch-up at 20V
- High-speed switching
- Circuit flexibility for varied applications
- TTL-compatible diode-clamped inputs
- Plastic DIP (P) with copper lead frame provides cooler operation and improved reliability
| Specifications | |
|---|---|
| Supply Voltage Min | 4.75V |
| Supply Voltage Max | 5.25V |
| No. of Outputs | 2Outputs |
| Output Voltage | 30V |
| Output Current | 400mA |
| Driver Case Style | DIP |
| Country of Origin: | Mexico |
