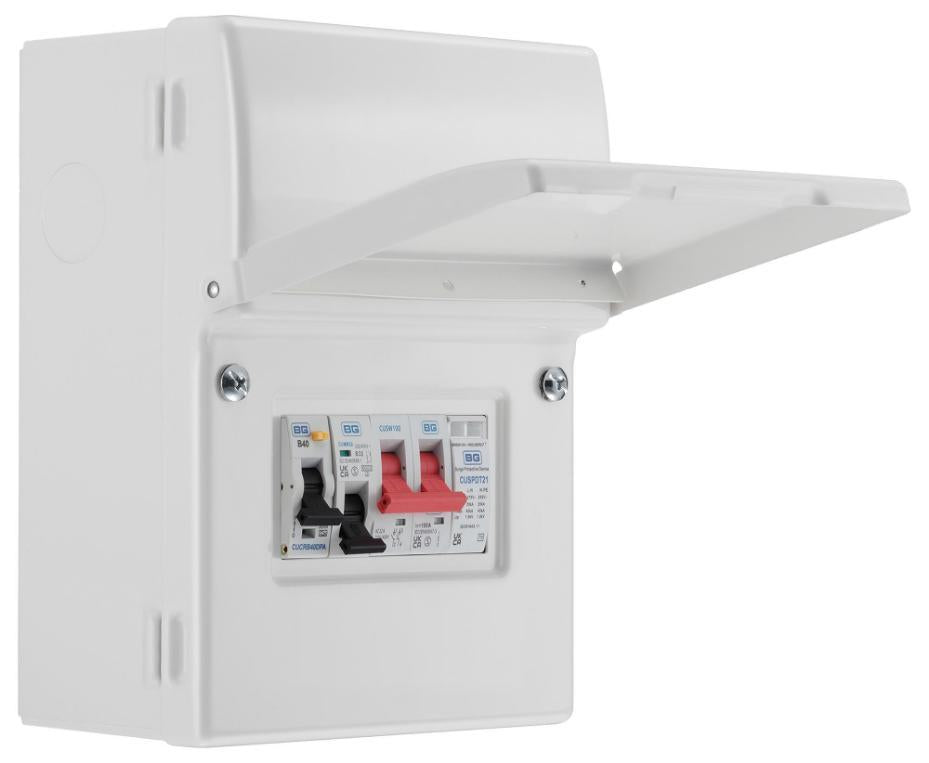

Electric Vehicle Consumer Unit, 5 Way, 100A Main Switch, 40A/30mA RCBO, White - CFUEV1RDA-01
Electric Vehicle Consumer Unit, 5 Way, 100A Main Switch, 40A/30mA RCBO, White - CFUEV1RDA-01
Regular price
£97.79 GBP
Regular price
Sale price
£97.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Features
- 40A Type-A, double-pole RCBO
- 100A main switch
- 32A B-curve MCB (for SPD)
- Type-2 SPD included
- White finish
- All metal construction
- Backed out and retained terminal screws
- Up-opening front cover
- Quick and easy installation
- 10-year warranty
- For use when the EV charger supply cable does not have mechanical protection
- IP20 rated, for internal use
- Enclosure kit supplied with devices, DIN rail, neutral cable, neutral and Earth terminals, labels, busbar with cover, and cover blanks
| Specifications | |
|---|---|
| Consumer Unit Usage | Electric Vehicle Charging |
| Enclosure Material | Steel |
| Supply Voltage | 240V |
| Current Rating | 100A |
| No. of Branch Circuits | 5Circuits |
| External Height | 233mm |
| External Width | 172mm |
| External Depth | 116mm |
| Product Range | BG Electrical - CF Series |
| Country of Origin: | China |
