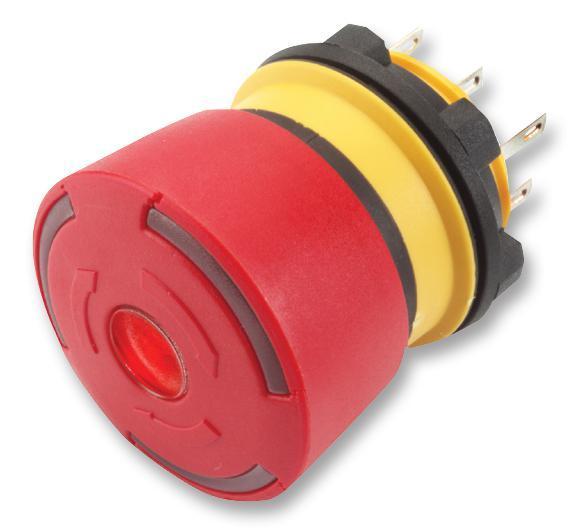

Emergency Stop Push Button Switch, 2NC, DPST, 5A, 250V AC - 84-5040.0020
Emergency Stop Push Button Switch, 2NC, DPST, 5A, 250V AC - 84-5040.0020
Regular price
£35.09 GBP
Regular price
Sale price
£35.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The 84-5040.0020 is an Emergency-stop Switch Unit with foolproof protection. It makes slow switch element and used for twist to unlock clockwise.
Features
- DPST Contact Configuration
- Position Indication Ring Black
- Plastic Lens Material
- Opaque Lens Optics
- 2.8 x 0.5mm Plug-in Terminal
- Gold-plated Contact
- IP65 Protection Rating
| Specifications | |
|---|---|
| Contact Configuration | DPST-NC |
| Switch Operation | On-Off |
| Switch Terminals | Quick Connect, Solder |
| Contact Current Max | 5A |
| Contact Voltage AC Nom | 250V |
| Contact Voltage DC Nom | 250V |
| Pushbutton Actuator Style | Mushroom |
| IP Rating | IP65 |
| Product Range | Series 84-50x0.0020 Series |
| Country of Origin: | Switzerland |
