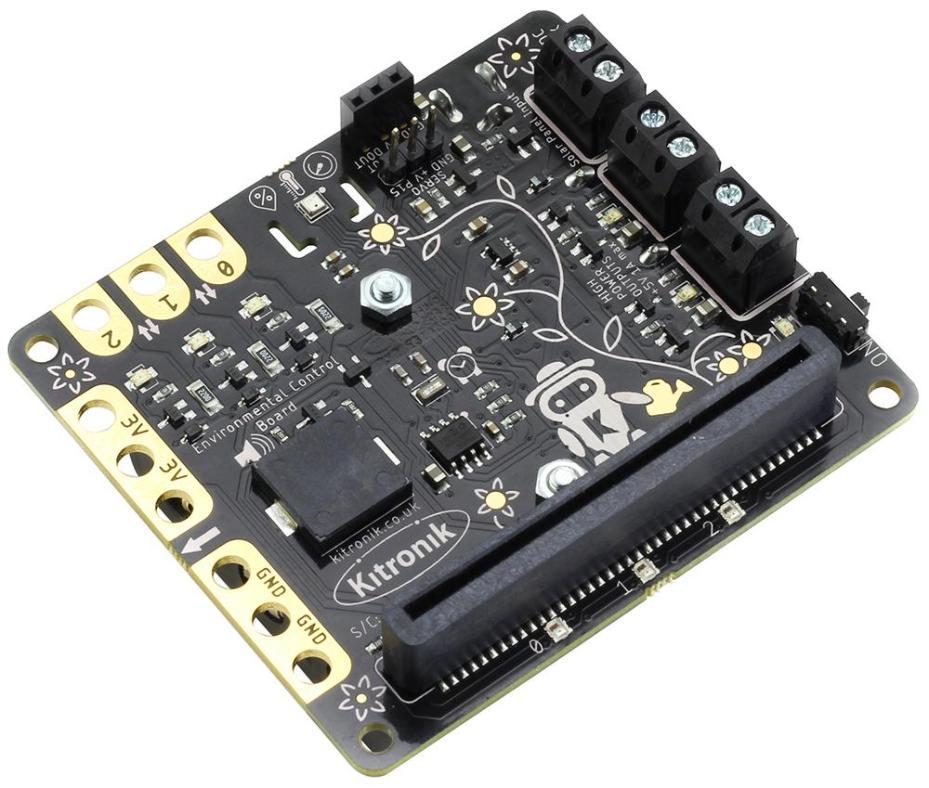

Environmental Control Board for micro:bit - 5697
Environmental Control Board for micro:bit - 5697
Regular price
£26.79 GBP
Regular price
Sale price
£26.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Environmental Control Board is designed to build an automated sytem around the micro:bit (compatible with V1 or V2) that reacts to evironmental changes. Providing a variety of sensor inputs and connection points combined with the ability to control outputs, makes the board ideal for environmental projects such as a water pump or heater pad.
Features
- Onboard BME 280 environmental temperature, barometric pressue and humidity sensors
- Also features 2x 1A outputs, servo output, 3x LEDs and ZIP LED expansion board
- Fitted with a real time clock (RTC) and loud piezo buzzer for audio feedback
- Breaks out 3 micro:bit pins to crocodile clip connections as well as pads for 3V & GND
- Custom blocks are available for the MakeCode editor, but the board can be programmed with Javascript or Python
- The micro:bit slots directly into the Edge connector
- Integrated 3x AA battery holder and 2.1mm DC power input for providing power (batteries not included)
- Additional solar cell input that can be used alongside rechargeable batteries
- Dimensions (HxWxD): 29x74.5x66mm
| Specifications | |
|---|---|
| Accessory Type | Sensor Board |
| For Use With | micro:bit |
| Product Contents: | Sensor board only |
| Important Product Info: | micro:bit shown for illustration only, not included |
| Country of Origin: | Great Britain |
