ESP WiFi Module Development Kit, DIP 30 Package - ESP32-C3-32S-KIT
ESP WiFi Module Development Kit, DIP 30 Package - ESP32-C3-32S-KIT
Regular price
£12.29 GBP
Regular price
Sale price
£12.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

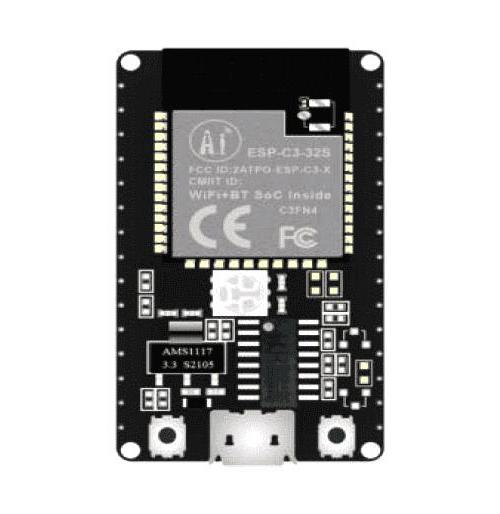

ESP32-C3-32S-KIT is a core development board designed by ESP-C3-32S modules. The development board continues the classic design of the NodeMCU development board, leading to all I/Os on both sides. With pin headers, developers can connect peripherals according to their needs. When using the breadboard for development and debugging, the standard headers on both sides can make the operation easier and more convenient. The ESP32-C3 chip has industry-leading low-power performance and radio frequency performance, and supports Wi-Fi IEEE802.11b/g/n protocol and BLE 5.0.
Features
- Complete 802.11b/g/n Wi-Fi+BT+BLE SoC module, 1T1R mode data rate up to 150Mbps
- ESP32-C3 RISC-V 32bit processor, clock frequency 160MHz with 400KB SRAM, 384KB ROM, 8KB RTC SRAM
- Support UART/GPIO/ADC/PWM/I2C/I2S inter-face, temperature sensor, pulse counter
- Development board has RGB 3-in-1 lamp beads which is convenient for second development of customers
- Integrated Wi-Fi MAC/BB/RF/PA/LNA/Bluetooth
- Support BLE5.0, does not support classic Bluetooth
- Support multiple sleep modes, deep sleep current is less than 5uA
- Serial port rate up to 5Mbps
- Support STA/AP/STA+AP mode and promiscu-ous mode
- Support secondary development, integrated Windows and Linux development environment
| Specifications | |
|---|---|
| Frequency RF | 160MHz |
| Module Interface | ADC, I2C, I2S, PWM, SPI, UART |
| Module Applications | Wireless Connectivity |
| Product Range | ESP32-C3-xxx-KIT Series |
| Country of Origin: | China |
