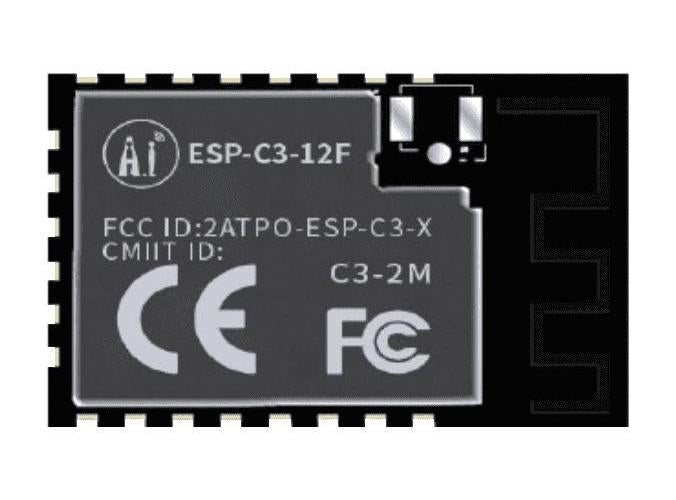

ESP WiFi Module, SMD 22 Package - ESP32-C3-12F
ESP WiFi Module, SMD 22 Package - ESP32-C3-12F
Regular price
£7.99 GBP
Regular price
Sale price
£7.99 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
ESP32-C3-12F is a ESP-C3 series Wi-Fi module. This module core processor ESP32-C3 is a Wi-Fi+ BLE combination of system-level chips (SoC), designed for various applications such as internet of things (IoT), mobile devices, wearable electronics, smart home, etc. ESP32-C3 with industry-leading low power and RF performance, supporting Wi-Fi IEEE802.11b/g/n agreements and BLE 5.0. ESP32-C3 chip is equipped with 32-bit RISC-V single-core processor, operating frequency up to 160MHz. The chip is support to have secondary development without using other microcontrollers or processors.
Features
- Complete Wi-Fi 802.11b/g/n, 1T1R mode data rate up to 150Mbps
- Support BLE5.0 and rate support: 125Kbps, 500Kbps, 1Mbps, 2Mbps
- 32bit RISC-V single-core processor, clock frequency 160MHz with 400KB SRAM, 384KB ROM, 8KB RTC SRAM
- Support UART/PWM/GPIO/ADC/I2C/I2S interface, temperature sensor, pulse counter
- Support multiple sleep modes, deep sleep electric current is less than 5uA
- UART rate up to 5Mbps
- Support STA/AP/STA+AP mode and mix mode
- Support smart config (APP)/AirKiss (WeChat) of Android and IOS one-click network configuration
- Support UART port local upgrade and remote firmware upgrade (FOTA)
- Support secondary development, integrated Linux development environment
| Specifications | |
|---|---|
| Frequency RF | 160MHz |
| Module Interface | ADC, I2C, I2S, PWM, SPI, UART |
| Module Applications | Internet of Things (IoT) |
| Product Range | ESP32-C3-xxx Series |
| Country of Origin: | China |
