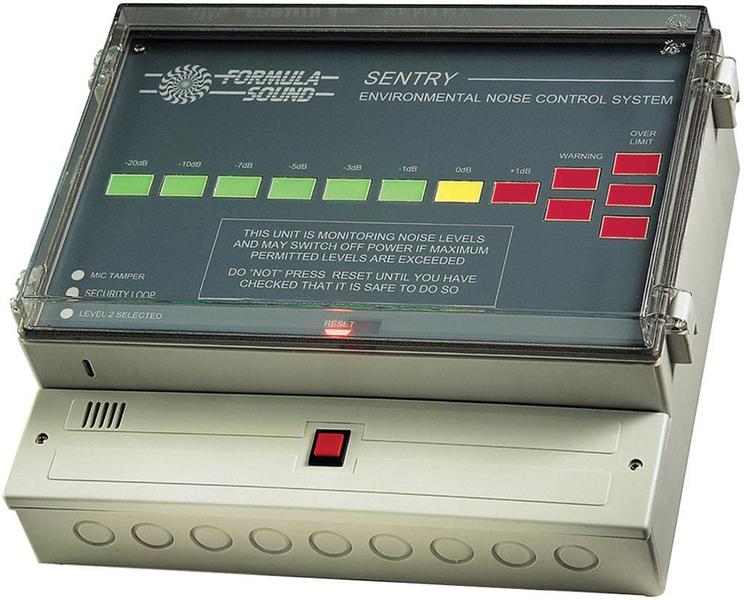

Formula Sound - SENTRY MK2 - Sound Level Cut Off Limiter
Formula Sound - SENTRY MK2 - Sound Level Cut Off Limiter
Regular price
£845.29 GBP
Regular price
Sale price
£845.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Sentry MK2 cut off limiter is designed to solve some of the environmental noise problems encountered in entertainment venues and working areas, by monitoring sound levels and provide a trigger when a preset sound level is exceeded. The trigger will normally be used to trip a contactor removing the mains power supply to the music system.
Features
- An adjustable measuring range from 85dB to 125dB so every possible eventuality can be dealt with.
- A choice of internal mic (supplied factory fitted) or external mic (with or without phantom power) may be selected. (Ext. mic not included)
- A choice of weighting filters (A, C, Bass) or no weighting filter (LIN)
- Two sound level thresholds may be set, level 1 (default) and level 2. Switching from level 1 to level 2 can be done on a switch or a timer
- Security loop (e.g. for fire alarm or fire doors)
- Anti-tamper microphone circuitry is incorporated with a front panel indicator
- Dual mains voltage operation is standard (internally switchable)
- Case provides easy connections via cable entry knock-outs and screw terminals
- Fire alarm interface
- Pair of isolated relay contacts
| Specifications | |
|---|---|
| External Width: | 320 |
| External Length / Height: | 261 |
| External Depth: | 120 |
| Country of Origin: | Great Britain |
