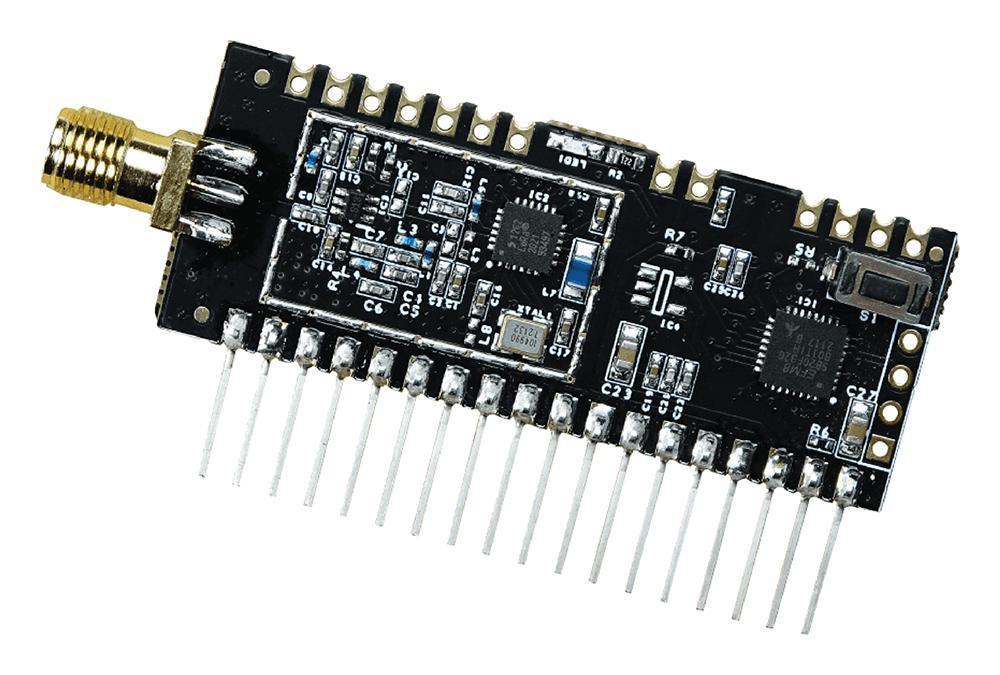

FSK/FHSS Radio Modem Module, 868MHz, 915MHz, SIL - GAMMA62M-89D
FSK/FHSS Radio Modem Module, 868MHz, 915MHz, SIL - GAMMA62M-89D
Regular price
£31.09 GBP
Regular price
Sale price
£31.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
GAMMA62M provides a simple "MODEM in a Module" radio link to replace a serial data cable. The user interface is standard low Voltage RS232, all RF operation is automatically performed internally (packetization, error checking etc). GAMMA62 operates on the European 868 band or USA/Australia 918 band with either high speed FM or spread spectrum, Modes 1 to 7 trading operating range with Data rate.
Features
- Suitable for remote networking, cable replacement, remote data logging and meter reading
- Intelligent RF "modem in a module"
- User Selectable 868/915MHz Operation
- FM / Spread Spectrum Secure RF
- Simple TX / RX Serial interface
- CTS/RTS handshake
- Range up to 20Km
- Transmit Power 158mW (+22dBm)
- Receiver Sensitivity -148dBm
- Host data rates up to 57,600 baud
- RF Data Rates to 115Kbps
- No external components
- LED Shows Data Flow
- Secure data protocol
- Ultra low power 2.4V - 3.6V operation
- CE compliant for licence free use
| Specifications | |
|---|---|
| Frequency RF | 915MHz |
| Output Power | 22dBm |
| Operating Voltage | 3.6V |
| Supply Current | 118mA |
| Country of Origin: | Great Britain |
