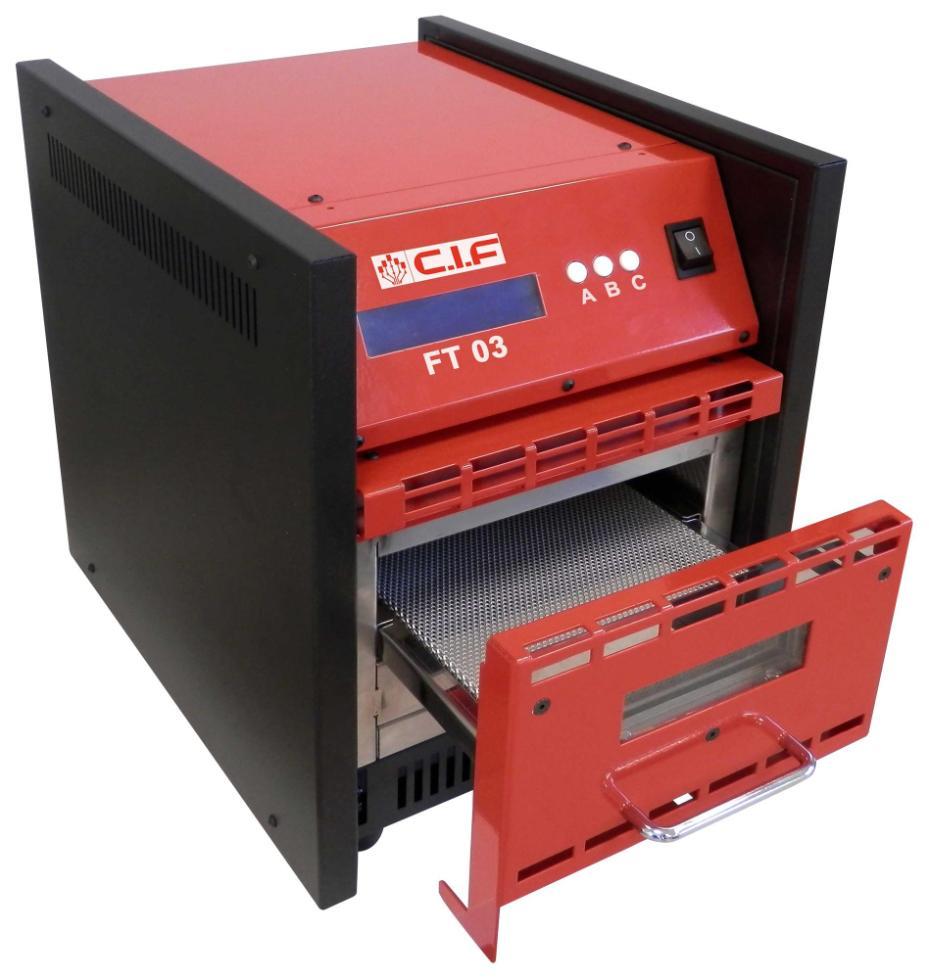

FT03 Batch Reflow Oven - CIF
FT03 Batch Reflow Oven - CIF
Regular price
£2,497.39 GBP
Regular price
Sale price
£2,497.39 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The FT03 oven has been designed for the reflow of solder paste or polymerization of the glues for prototyping. It features microprocessor controlled heating, 10 programs memory with LCD display and a large viewing window to supervise the process.
Features
- Designed for reflow of solder paste or for polymerisation of prototyping glues
- New heating system makes it suitable for lead-free and high temperature alloys
- Large window panel keeps card in view
- Compact housing design with generous 190x290mm working area
- 10 Program memory complete with LCD display for temperature & time
- Simple programming for intuitive control
- Heating through forced air convection
- Utilises 2x 1Kw quartz heating elements
- 2 Level heating with microprocessor controlled temperature up to maximum 300°C
- Thermic stabilisation time is approx. 3 minutes
- <50dBA Noise level
- 230V Mains powered, 50/60Hz
| Specifications | |
|---|---|
| Tank Type | Reflow Oven |
| Operating Temperature Max | 300°C |
| Power Rating | 2kW |
| Voltage Rating | 230V |
| External Height | 290mm |
| External Width | 190mm |
| External Depth | 430mm |
| Country of Origin: | France |
