Ftdi Breakout Module Based On Ft200xd Usb To I2c Interface Ic Solder Ended
Ftdi Breakout Module Based On Ft200xd Usb To I2c Interface Ic Solder Ended
Regular price
£11.59 GBP
Regular price
Sale price
£11.59 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

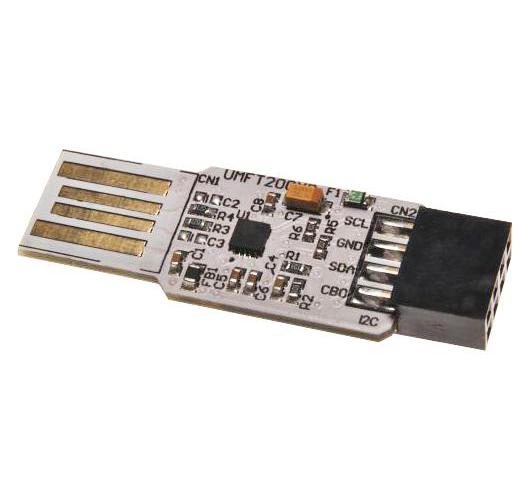

UMFT200XD-NC breakout module utilizes FT200XD IC to convert USB to an I2C. The UMFT200XD is a breakout board that converts USB2.0 full speed to I2C. These modules do not have a USB connector, instead the modules plug directly into the USB host connector and the pads of the PCB makes electrical contact with the electrical contacts of the USB connector. The I2C interface operates at +3.3V voltage levels, however all I/Os are 5V tolerant.
Features
- Single chip USB to I2C interface
- Entire USB protocol handled on the chip. No USB specific firmware programming required
- Royalty free VCP and D2XX drivers eliminate the requirement for USB driver development in most cases
- Configurable CBUS I/O pin
- Device supplied preprogrammed with unique USB serial number
- Supports bus powered, self powered and high power bus powered USB configurations
- Integrated power on reset circuit
- Low USB bandwidth consumption
- UHCI/OHCI/EHCI host controller compatible
- USB 2.0 full speed compatible
| Specifications | |
|---|---|
| Silicon Manufacturer: | FTDI |
| Silicon Core Number: | FT200XD |
| Kit Application Type: | Interface Module |
| Application Sub Type: | USB to I2C |
| Kit Contents: | Dev Board FT200XD |
| Features: | Full Speed USB2.0, 4 Control Bus Lines, 8 Pads on the PCB I2C, Embedded ROM, 3.3V O/P, USB Powered |
| Country of Origin: | China |
