Ftdi Breakout Module Based On Ft200xd Usb To I2c Interface Ic Wire Ended Connect
Ftdi Breakout Module Based On Ft200xd Usb To I2c Interface Ic Wire Ended Connect
Regular price
£12.69 GBP
Regular price
Sale price
£12.69 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

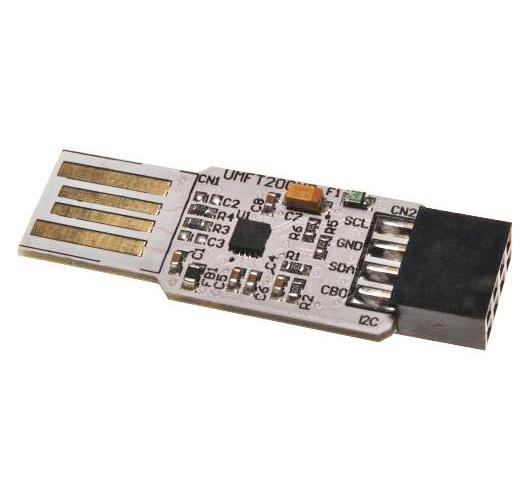

The UMFT200XD-WE is a Breakout Board to convert USB to I2C with four control bus lines. This module do not have USB connector, instead the module plug directly into the USB host connector and the pads of the PCB makes electrical contact with the electrical contacts of the USB connector. The I2C interface operates at 3.3V voltage levels, however all I/Os are 5V tolerant.
Features
- 3.3V Power out limited to 50mA and 5V with as safety fuse
- I2C signals available via 8, 6" flying leads connected to the PCB pads
- Royalty free VCP and D2XX drivers eliminate the requirement for USB driver development in most cases
- Configurable CBUS I/O pin
- Device supplied preprogrammed with unique USB serial number
- Supports bus powered, self powered and high power bus powered USB configurations
- Integrated power on reset circuit
- Low USB bandwidth consumption
- UHCI/OHCI/EHCI host controller compatible
- USB 2.0 full speed compatible
| Specifications | |
|---|---|
| Silicon Manufacturer: | FTDI |
| Silicon Core Number: | FT200XD |
| Kit Application Type: | Interface Module |
| Application Sub Type: | USB to I2C |
| Kit Contents: | Dev Board FT200XD |
| Features: | Full Speed USB2.0, 4 Control Bus Lines, 8 Wire Leads I2C from PCB, Embedded ROM, 3.3V O/P, USB Power |
| Country of Origin: | China |
