Ftdi Breakout Module Based On Ft201xq Usb To I2c Slave Interface Chip Wire Ended
Ftdi Breakout Module Based On Ft201xq Usb To I2c Slave Interface Chip Wire Ended
Regular price
£13.49 GBP
Regular price
Sale price
£13.49 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

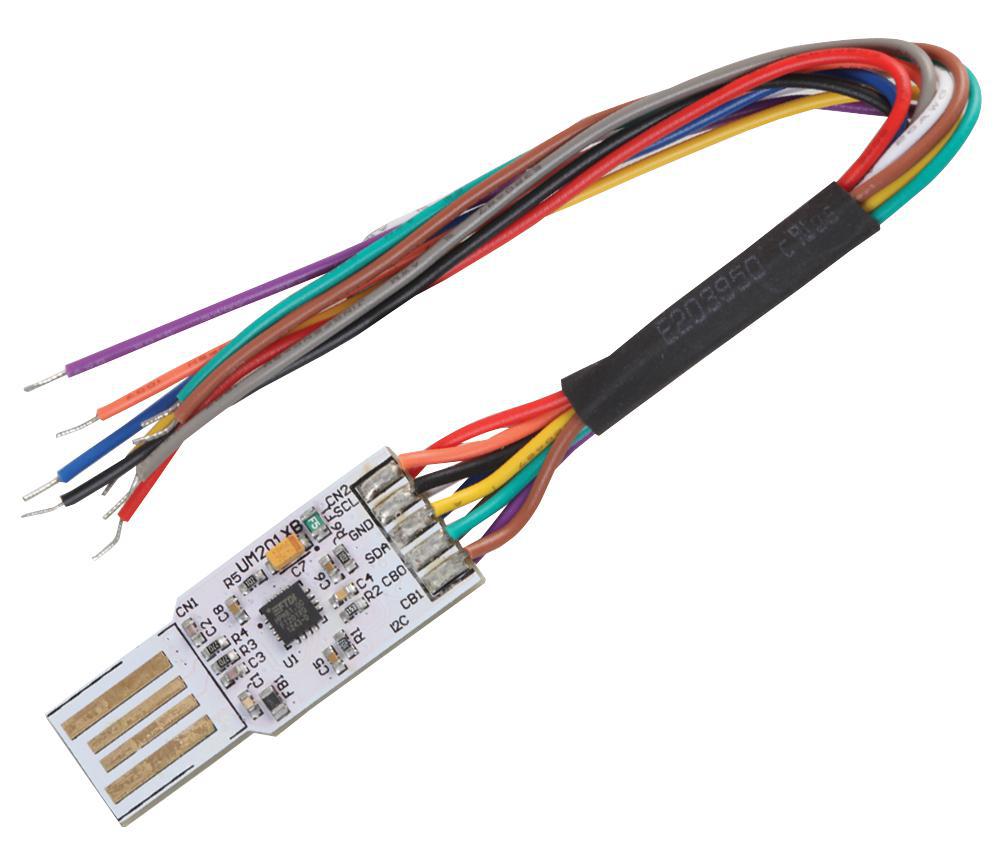

The UMFT201XB-WE is a Breakout Board with a low profile to convert USB to I2C with four control bus lines. This module converts USB2.0 full-speed to a serial interface and connects the serial signals to a 2.54mm (0.1") pitch 10-pin female receptacle. The boards do not use USB connector, but instead the modules plug directly into the USB host connector and the pads of the PCB makes electrical contact with the electrical contacts of the USB connector. All serial interfaces on these modules operate at 3.3V voltage levels, however all I/Os are 5V tolerant.
Features
- 3.3V Power out with a 50mA current limit and fused 5V
- Wire ended option, 6" flying leads fitted to CN2
- Entire USB protocol handled on the chip. No USB specific firmware programming required
- Royalty free VCP and D2XX drivers eliminate the requirement for USB driver development in most cases
- Configurable CBUS I/O pin
- Transmit and receive LED drive signals
- Device supplied preprogrammed with unique USB serial number
- Integrated power on reset circuit
- UHCI/OHCI/EHCI host controller compatible
- USB 2.0 Full Speed compatible
| Specifications | |
|---|---|
| Silicon Manufacturer: | FTDI |
| Silicon Core Number: | FT201XB |
| Kit Application Type: | Interface Module |
| Application Sub Type: | USB to I2C |
| Kit Contents: | Dev Board FT201XB |
| Features: | Full Speed USB2.0, 4 Control Bus Lines, 8 Wire Leads I2C from PCB, Embedded ROM, 3.3V O/P, USB Power |
| Country of Origin: | China |
