Ftdi - MM900EV2A - Dev Brd, Ft902q Embedded Mcu Front Cam
Ftdi - MM900EV2A - Dev Brd, Ft902q Embedded Mcu Front Cam
Regular price
£76.59 GBP
Regular price
Sale price
£76.59 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

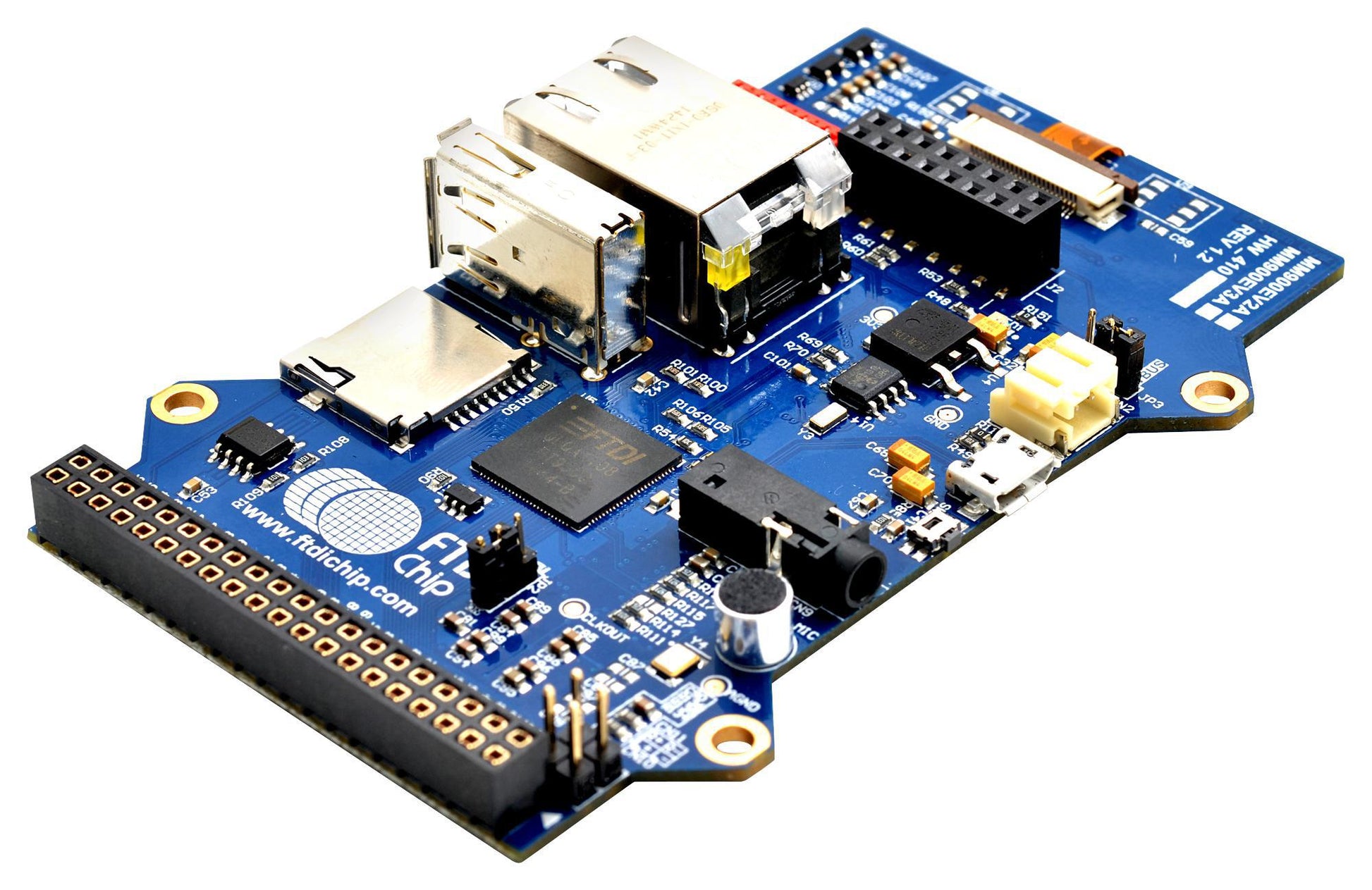

The MM900EV2A development module provides full hardware feature support for the FT90x MCU. The module also provides a connector for accessing external plug-in hardware over an SPI interface. Targeted applications for the module include home security, HMI and automation systems,USB capability products, embedded multimedia applications and a range of other industrial control systems.
Product Info
- Equipped with a front-facing CMOS camera
- FT90x 100-pin QFN package MCU
- RJ45 With built in magnetics for 10/100Mbps Ethernet transfer
- Standard USB-A connector to support USB device connection
- Micro-B USB for connecting to a USB host or providing a power supply over USB
- In built audio codec for stereo audio output with 3.5mm headphone jack and mono microphone input
- Debugger interface for FT90x flash programming and EFUSE configuration
- +5V Alternative power supply DC connector
- 2x5-Pins 1.27mm pitch female Micro-MaTch connector for software download
- 2x20-Pins 2.54mm pitch female header support for external feature expansions
| Details | |
|---|---|
| Silicon Manufacturer: | FTDI |
| Core Architecture: | FT32 |
| Silicon Core Number: | FT902Q |
| Silicon Family Name: | FT900 |
| No. of Bits: | 32bit |
| Kit Contents: | Dev Board FT902, Front Facing VGA Camera Module |
| Features: | 100MHz CPU, 10/100Mbps Ethernet, Audio CODEC, MicroSD/USB, 24pin Camera Connector, Ext/USB Supply |
| Important Product Info: | Drivers and Software available to download from ftdichip website |
| Country of Origin: | Taiwan |
