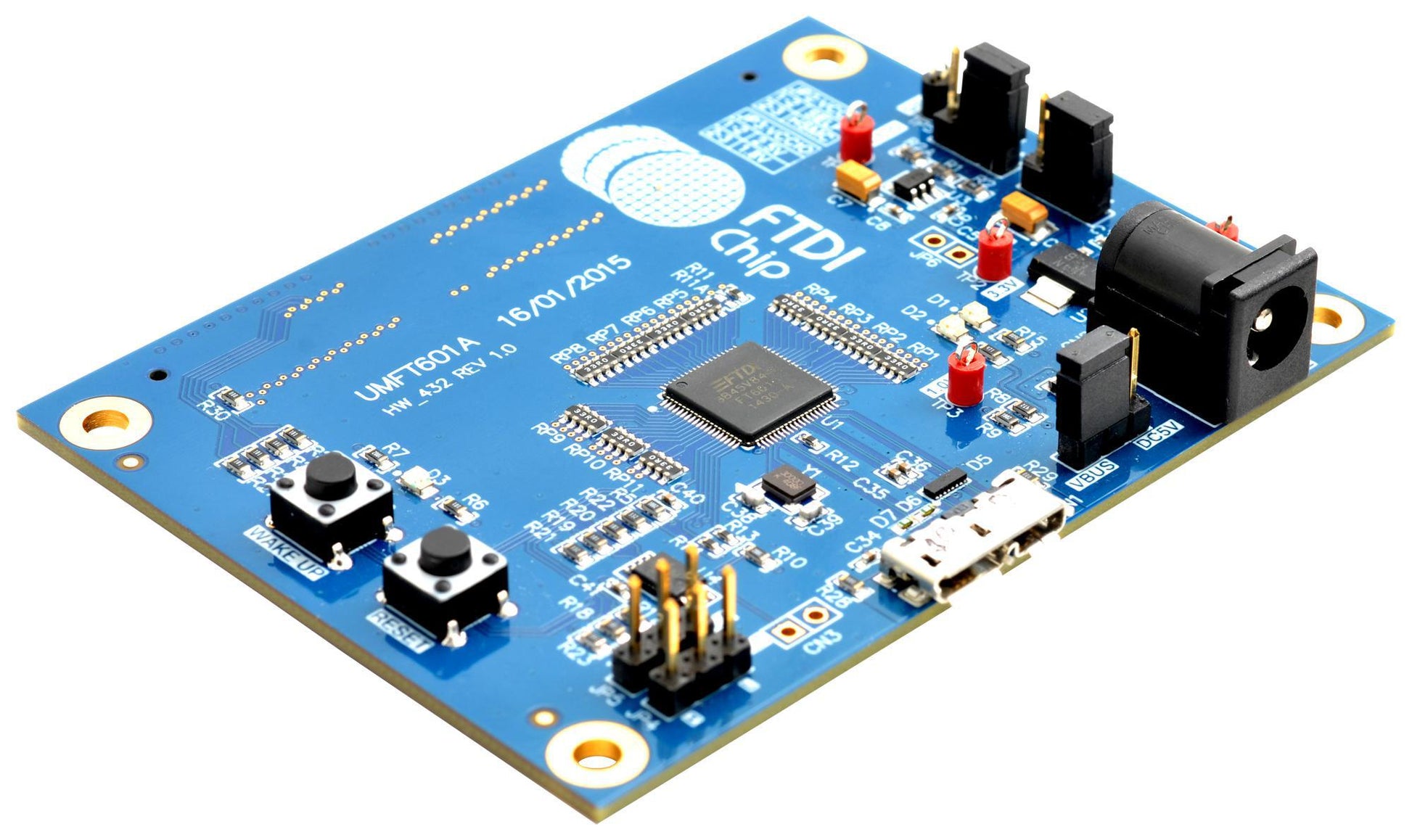

Ftdi - UMFT601A - Eval Board, Ft601 16bit Fifo-usb Bridge
Ftdi - UMFT601A - Eval Board, Ft601 16bit Fifo-usb Bridge
Regular price
£64.29 GBP
Regular price
Sale price
£64.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The UMFT601A is an Evaluation Board with HSMC connector for interfacing FT60x USB 3.0 super speed IC with external hardware. The board allows for bridging a 32-bit FIFO bus to USB3.0 host and evaluating the functionality of the FT60x. As a daughter card, the board must work with a FIFO master board which has HSMC connector. The board supports 2 parallel slave FIFO bus protocols (multi-channel FIFO/245 synchronous FIFO) with a data "burst" rate of up to 400Mbps.
Product Info
- 32-Bit FIFO bus, HSMC connector
- Support for USB3.0 SuperSpeed (5Gbps), USB High Speed (480Mbps) and USB 2.0 Full Speed (12Mbps) transfer
- 4 IN Channels and 4 OUT channels on FIFO bus connectivity
- Supports multi voltage I/O: 1.8V, 2.5V and 3.3V
- High speed connector for FIFO bus : FMC(Field Programmable Mezzanine Card) or HSMC (High Speed Mezzanine Card)
- FMC Connector is compatible with most Xilinx FPGA reference design boards
- HSMC Compatible with most Altera FPGA reference design boards
- Multi powered options: external DC powered, BUS powered, FMC/HSMC powered
- Hardware Reset and Remote Wake Up
- Micro-USB3.0 receptacle
| Details | |
|---|---|
| Silicon Manufacturer: | FTDI |
| Silicon Core Number: | FT601 |
| Kit Application Type: | Interface |
| Application Sub Type: | FIFO to USB |
| Kit Contents: | Eval Board FT601 |
| Features: | 32bit FIFO to USB 3.0 Bridge, 4 I/O Channels, HSMC Conn, Micro-USB 3.0 Rcpt, Ext DC/BUS/HSMC Powered |
| Important Product Info: | Drivers and Software available to download from ftdichip website |
| Country of Origin: | China |
