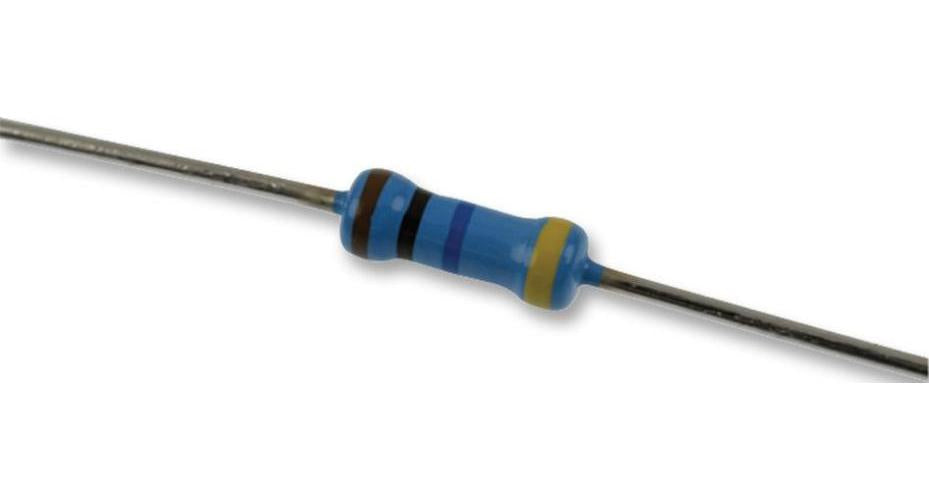

High Ohmic / High Voltage Metal Glaze Leaded Resistor, 68 Mohm, 1W, +/- 5%, 10kV - VR68000006805JAC00
High Ohmic / High Voltage Metal Glaze Leaded Resistor, 68 Mohm, 1W, +/- 5%, 10kV - VR68000006805JAC00
Regular price
£2.09 GBP
Regular price
Sale price
£2.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The VR68 series high ohmic/high voltage Leaded Resistor made of high grade ceramic body with a metal glazed film deposition. After a helical groove has been cut in the resistive layer, tinned electrolytic copper wires are welded to the end-caps. The resistor is coated with a light blue lacquer which provides electrical, mechanical and climatic protection.
Features
- High pulse loading capability (maximum 10kV)
- Meets IEC 60065, EN 60065, VDE 0860 and CQC (China) standards
- Applicable where high resistance, high stability and high reliability at high voltage are required
| Specifications | |
|---|---|
| Resistance | 68Mohm |
| Product Range | VR68 |
| Power Rating | 1W |
| Resistance Tolerance | ± 5% |
| Resistor Case / Package | Axial Leaded |
| Voltage Rating | 10kV |
| Resistor Technology | Metal Film |
| Temperature Coefficient | ± 200ppm/K |
| Country of Origin: | Great Britain |
