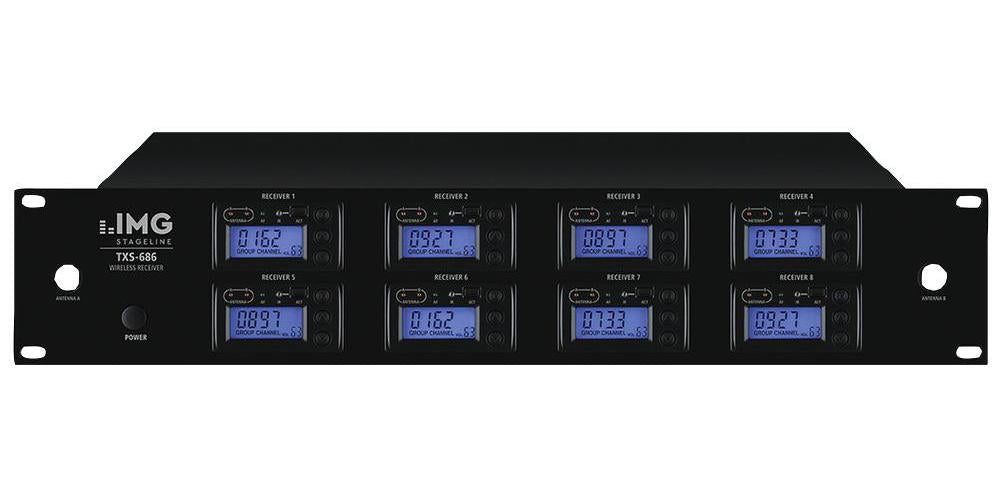

Img Stage Line - TXS-686 - Receiver Unit, 8 Channel
Img Stage Line - TXS-686 - Receiver Unit, 8 Channel
Regular price
£936.19 GBP
Regular price
Sale price
£936.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Combined with up to eight wireless micro¬phones, the 8-channel receiver TXS-686 creates a wireless audio transmission system ideally suited for conferences as well as for musicians and live performances on stage. The True Diversity receiver uses the UHF range 672.000 - 696.975MHz. Frequency setting via the ACT function (Auto¬matic Channel Targeting) is a most convenient feature: Simply press a button to set the wire¬less microphone via IR signal to the channel selected on the receiver.
Product Info
- 8 Channel multi-frequency receiver unit, with UHF PLL technology.
- 1,000 Selectable UHF frequencies for each channel (10 groups with 100 channels each)
- ACT function for transmitting the selected
- Auto scan
- True diversity system with removable antennas (BNC connection)
- Volume and squelch controls for each channel
- LCD for indicating group/channel, RF receiving level, AF audio level and additional LED indication for antenna A/B, audio signal of each channel
- Robust metal housing
- Supplied with PSU
- 2U 19" rack installation
| Details | |
|---|---|
| Product Range: | IMG Stageline TXS-606 |
| External Width: | 482 mm |
| Frequency Response Min: | 30 Hz |
| Weight: | 4.4 kg |
| Operating Temperature Max: | 40 °C |
| Frequency Response Max: | 18 kHz |
| External Length / Height: | 90 mm |
| External Depth: | 310 mm |
| Important Product Info: | This system operates within the licensed frequency range of 470-790MHz, please see Ofcom website for more details |
| Country of Origin: | China |
