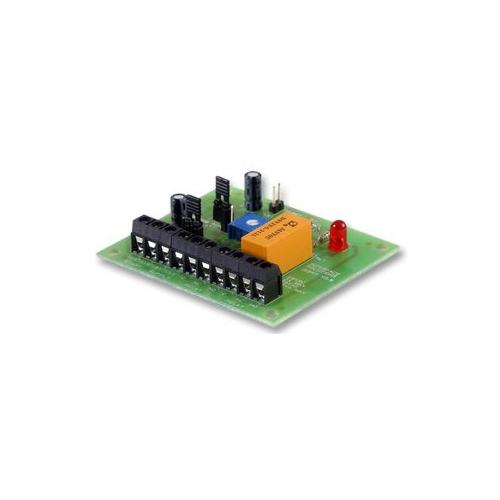

INTERFACE SOLUTIONS - IS DRT - 12/24V 0-15MIN TIMER

Simple, low cost and versatile timer that is suitable for security, fire, door access, CCTV systems and many other applications where a reliable timer is required. It has been designed for 12 or 24V DC operation and has a double pole relay rated 2A at 24Vdc.

• Two time scales: 0-60 seconds or 1-15 minutes selected by jumper link 4
• 3 Modes: Latched, non-latched (timed) and delayed mode (timed)
• Complete with LED indication
• Quiescent current: 4/12mA
• Activated current: 30/42mA
• Dimensions (LxWxH): 67x57x17mm
