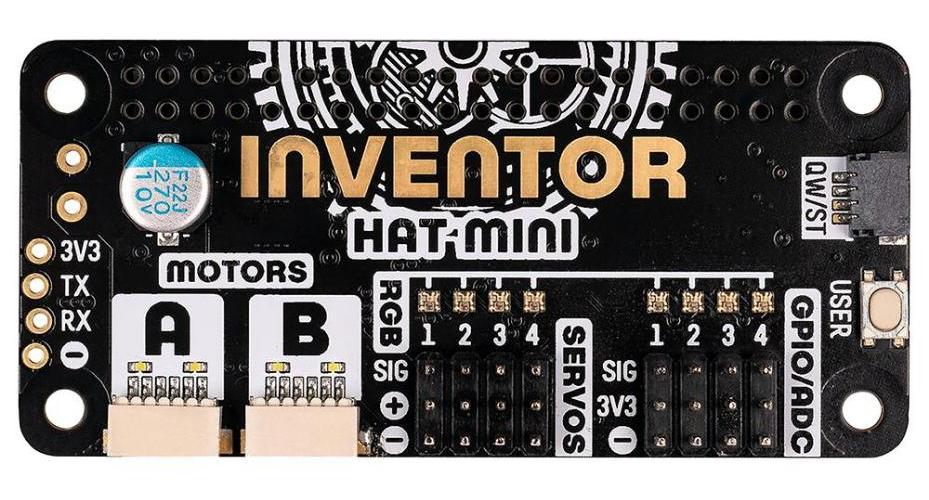

Inventor HAT Mini for Raspberry Pi - PIM672
Inventor HAT Mini for Raspberry Pi - PIM672
Regular price
£30.49 GBP
Regular price
Sale price
£30.49 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Inventor HAT Mini is a versatile expansion board equipped with motor, servo & audio drivers, making it the perfect solution for powering any number of creative mechanical projects. The HAT utilises a Nuvoton microcontroller to handle the majority of functions, freeing up the GPIO to stack other HATs & components with the passthrough header. The HAT also features 8 addressable RGB pixels, pre-soldered pin headers and a fully featured Python library so you can put it to use straight away!
Features
- Nuvoton microcontroller (MS51TC0AE) with 16-bit PWM and 12-bit Analogue to Digital Converter
- Header pins that support up to four 3-pin hobby servos
- DRV8833 Dual H-Bridge motor driver with 6-pin JST-SH connectors for motors with encoders
- Alternative socket connector for attaching 2-pin motors
- MAX98357 3.2W I2S mono amplifier with Picoblade-compatible 2-pin speaker connector
- Physical user button
- Eight addressable RGB LEDs
- Expandable design with passthrough header for stacking other boards and HATs
- Four extra ADC-capable GPIO pins for connecting extra sensors, buttons or LEDs
- Pre-soldered headers and Qw/ST connector for attaching breakouts
- Fully featured Python library with examples for coding
- Mini HAT format, compatible with all Raspberry Pi models with 40 Pin header
- Dimensions (HxWxD): 16x65x30mm
| Specifications | |
|---|---|
| For Use With | Raspberry Pi |
| Kit Contents | Inventor HAT Mini Board |
| Product Contents: | Board only |
| Country of Origin: | Great Britain |
