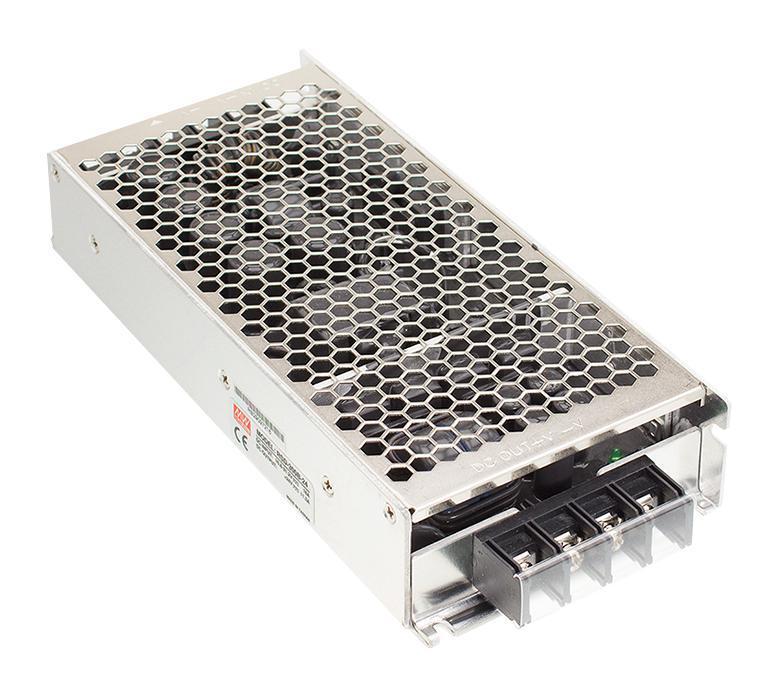

Isolated Chassis Mount DC/DC Converter, 24V, 12.5A, 300W - RSD-300C-24
Isolated Chassis Mount DC/DC Converter, 24V, 12.5A, 300W - RSD-300C-24
Regular price
£222.29 GBP
Regular price
Sale price
£222.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
A DC-DC converter is a device used to convert a DC source from one voltage level to another. Mean Well's DC-DC converters equipped with internal EMI filter stage that possess the required EMC performance.
Features
- Compliance to EN50155 and EN45545-2 railway standard
- 2:1 wide input range
- Protections: Short circuit / Overload / Over voltage / Over temperature / Input reverse polarity
- 4kV DC I/O isolation
- Cooling by free air convection
- Half-encapsulated
- Built-in constant current limiting circuit
- 1U low profile 40mm
- All using 105°C long life electrolytic capacitors
- LED indicator for power on
- 100% full load burn-in test
- 3-years warranty
| Specifications | |
|---|---|
| Power Supply Applications | Railway |
| Input Ratio | 2:1 |
| Output Power Max | 300W |
| No. of Outputs | 1 Output |
| Output Voltage - Output 1 | 24V |
| Output Current - Output 1 | 12.5A |
| Isolation Voltage | 4kV |
| DC / DC Converter Type | Enclosed |
| Input Voltage DC Nom | 48V |
| DC / DC Converter Output Type | Fixed |
| Width | 96.5mm |
| Height | 40mm |
| Depth | 216mm |
| Input Voltage DC Min | 33.6V |
| Input Voltage DC Max | 62.4V |
| Product Range | RSD-300 Series |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
| Country of Origin: | Taiwan |
