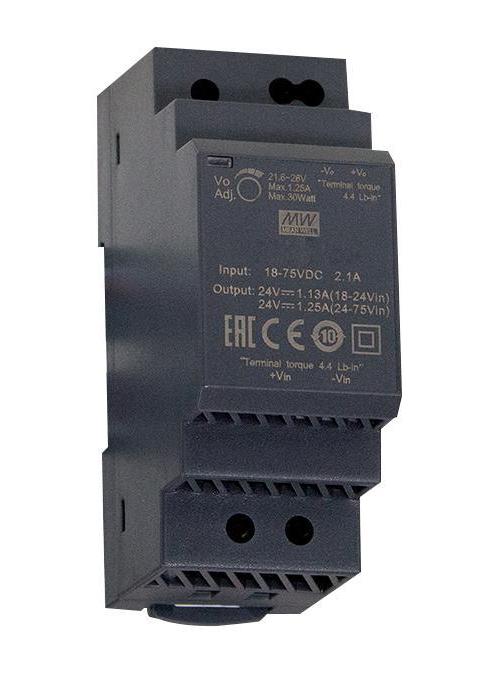

Isolated DIN Rail Mount DC/DC Converter, 24V, 1.25A, 30W - DDR-30L-24
Isolated DIN Rail Mount DC/DC Converter, 24V, 1.25A, 30W - DDR-30L-24
Regular price
£35.59 GBP
Regular price
Sale price
£35.59 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
DDR-30 series is a 30W DIN Rail type DC-DC converter with main features including DIN rail-type easy installation, ultra slim width (35mm), 4:1 ultra wide input voltage, -4O to +85°C wide operating temperature, 4kVdc I/O isolation, adjustable output voltage (±10%) and full protective functions.
Features
- Width only 17.5mm (1SU)
- 4:1 ultra-wide input range
- -40 to +85°C wide working temperature
- No minimum load required
- DC output adjustable (±10%)
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- Protections: Short circuit / Overload / Over voltage / Input reverse polarity / Input under voltage protection
- 4KVdc I/O isolation(Reinforced isolation)
- 3 years warranty
| Specifications | |
|---|---|
| Power Supply Applications | Railway |
| Input Ratio | 4:1 |
| Output Power Max | 30W |
| No. of Outputs | 1 Output |
| Output Voltage - Output 1 | 24V |
| Output Current - Output 1 | 1.25A |
| Isolation Voltage | 4kV |
| DC / DC Converter Output Type | Fixed, Adjustable |
| Input Voltage DC Nom | 48V |
| Width | 35mm |
| Height | 90mm |
| Depth | 54.5mm |
| Input Voltage DC Min | 18V |
| Input Voltage DC Max | 75V |
| Product Range | DDR-30 Series |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
| Country of Origin: | China |
