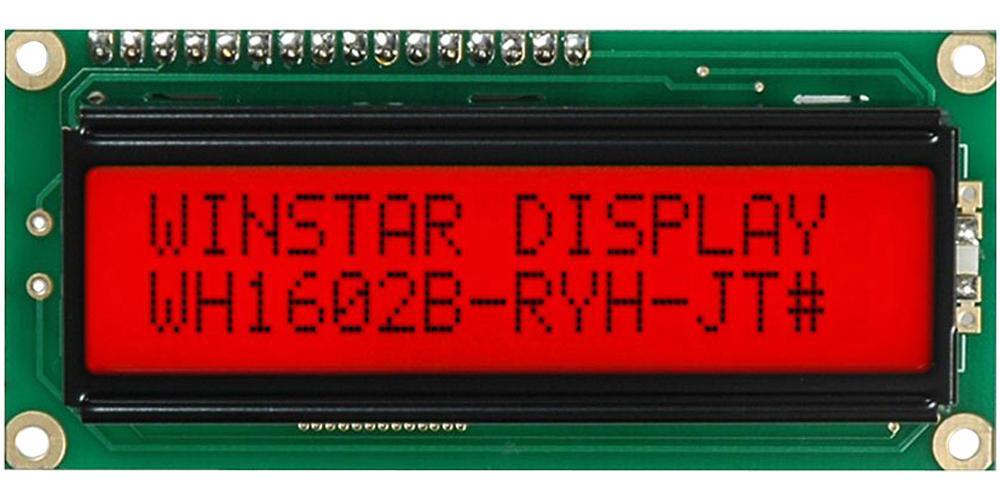

LCD Display Module, 16x2, Red / Black - WINSTAR
LCD Display Module, 16x2, Red / Black - WINSTAR
Regular price
£14.19 GBP
Regular price
Sale price
£14.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Features
- Character Display LCD: 16x2
- 5x8 dots includes cursor
- Built-in ST7066 controller
- Negative voltage optional for +3V power supply
- 1/16 duty cycle
- Module dimension: 80x36x13.5mm
- View area: 66x16mm
- Active area: 56.2x11.5mm
- Dot size: 0.55x0.65mm
- Dot pitch: 0.60x0.70mm
- Character size: 2.95x5.55mm
- Character pitch: 3.55x5.95mm
- LCD type: FSTN, Negative, Transmissive
- Viewing direction: 6 O'Clock
| Specifications | |
|---|---|
| Character Count x Line | 16 x 2 |
| Logic Voltage | 3V to 5V |
| Font Set | English, Euro, Japanese |
| Display Mode | Transmissive |
| Character Size | 2.95mm |
| LCD Display Type | Character |
| Operating Temperature Min | -20°C |
| Operating Temperature Max | 70°C |
| Display Construction | Module |
| Backlighting Colour | Red / Black LED |
| Country of Origin: | China |
