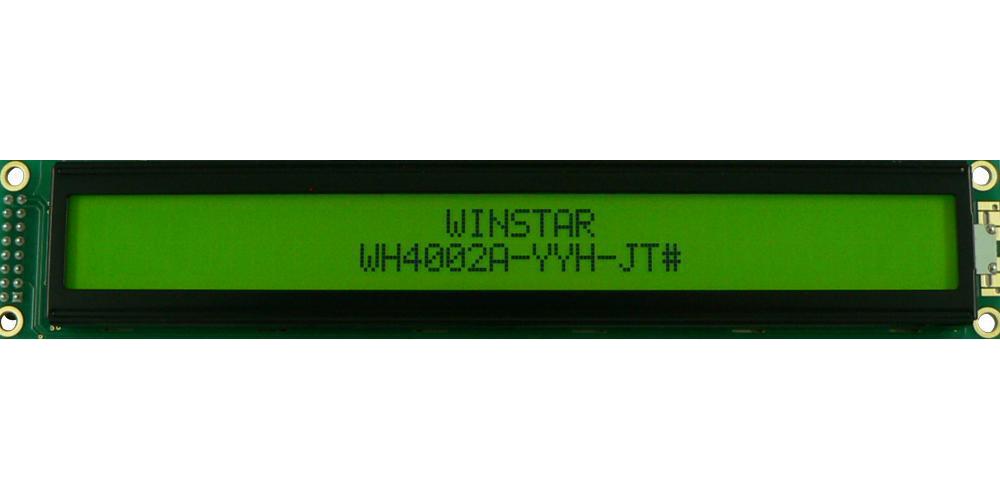

LCD Display Module, 40x2, Yellow / Green - WINSTAR
LCD Display Module, 40x2, Yellow / Green - WINSTAR
Regular price
£29.09 GBP
Regular price
Sale price
£29.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The WH4002A-YYH-JT is yellow/green 40x2 Character LCD display module which has a built in ST7066U controller IC, its default interface is 6800 4/8-bit parallel.
Features
- Character Display LCD: 40x2
- 5x8 dots includes cursor
- Built-in ST7066 controller
- Negative voltage optional for +3V power supply
- 1/16 duty cycle
- Module dimension: 180x33.5x13.6mm
- View area: 154.4x16.5mm
- Active area: 147.5x11.5mm
- Dot size: 0.60x0.65mm
- Dot pitch: 0.65x0.70mm
- Character size: 3.20x5.55mm
- Character pitch: 3.70x5.95mm
- LCD type: STN, Positive, Transflective
- Viewing direction: 6 O'Clock
| Specifications | |
|---|---|
| Character Count x Line | 40 x 2 |
| Logic Voltage | 3V to 5V |
| Font Set | English, Euro, Japanese |
| Display Mode | Transflective |
| Character Size | 3.2mm |
| LCD Display Type | Character |
| Operating Temperature Min | -20°C |
| Operating Temperature Max | 70°C |
| Display Construction | Module |
| Backlighting Colour | Yellow / Green LED |
| Country of Origin: | China |
