LCD Display Module, 40x4, Blue / White - WINSTAR
LCD Display Module, 40x4, Blue / White - WINSTAR
Regular price
£39.49 GBP
Regular price
Sale price
£39.49 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

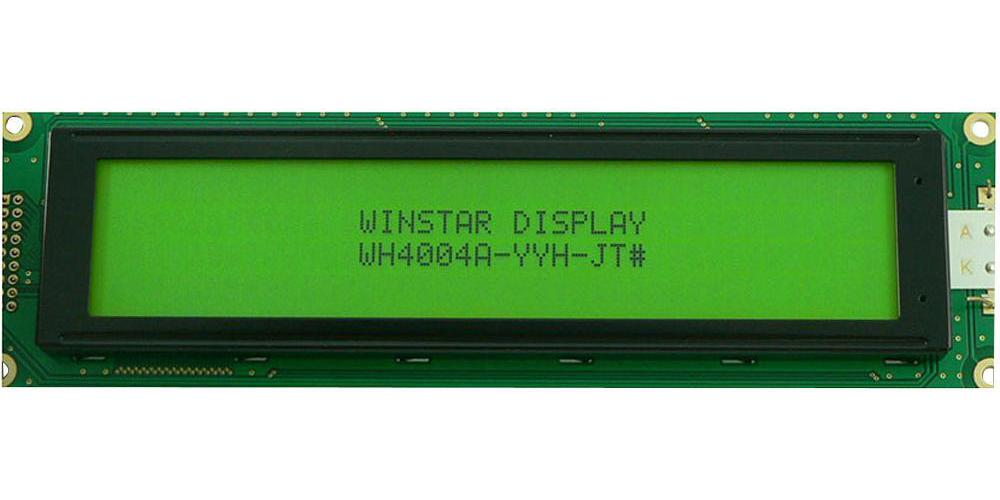

The WH4004A-TMI-JT is blue/white 40x4 Character LCD display module which has a built in ST7066 controller IC, its default interface is 6800 4/8-bit parallel.
Features
- Character Display LCD: 40x4
- 5x8 dots includes cursor
- Built-in ST7066 controller
- Negative voltage optional for +3V power supply
- 1/16 duty cycle
- Module dimension: 190x54x13.6mm
- View area: 147x29mm
- Active area: 140.45x23.16mm
- Dot size: 0.50x0.55mm
- Dot pitch: 0.57x0.62mm
- Character size: 2.78x4.89mm
- Character pitch: 3.53x6.09mm
- LCD type: STN, Negative, Transmissive
- Viewing direction: 6 O'Clock
| Specifications | |
|---|---|
| Character Count x Line | 40 x 4 |
| Logic Voltage | 3V to 5V |
| Font Set | English, Euro, Japanese |
| Display Mode | Transmissive |
| Character Size | 2.78mm |
| LCD Display Type | Character |
| Operating Temperature Min | -20°C |
| Operating Temperature Max | 70°C |
| Display Construction | Module |
| Backlighting Colour | Blue / White LED |
| Country of Origin: | China |
