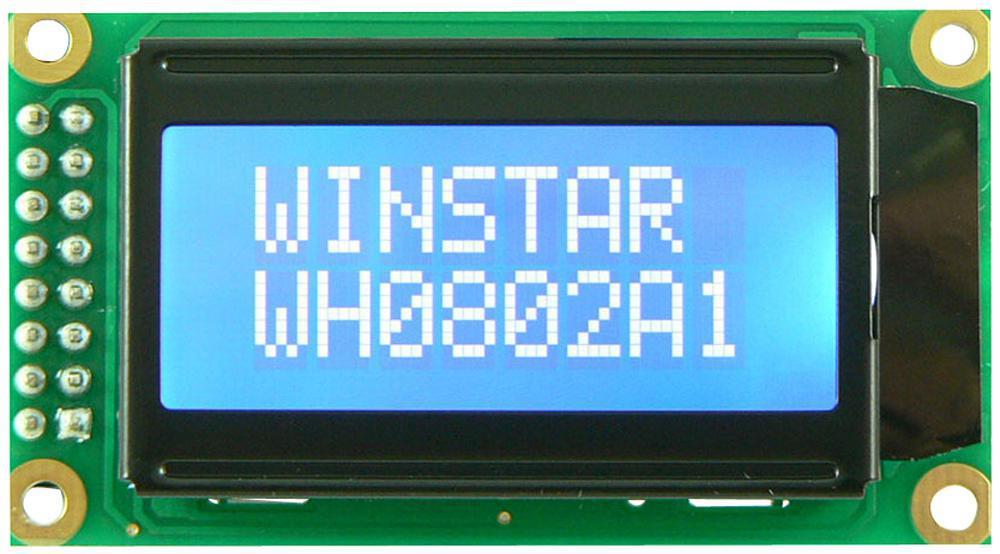

LCD Display Module, 8x2, Yellow / Green - WINSTAR
LCD Display Module, 8x2, Yellow / Green - WINSTAR
Regular price
£8.59 GBP
Regular price
Sale price
£8.59 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Features
- Character Display LCD: 8x2
- 5x8 dots includes cursor
- Built-in ST7066 controller
- Negative voltage optional for +3V power supply
- 1/16 duty cycle
- Module dimension: 58x32x13.2mm
- View area: 38x16mm
- Active area: 27.81x11.5mm
- Dot size: 0.56x0.66mm
- Dot pitch: 0.60x0.70mm
- Character size: 2.96x5.56mm
- Character pitch: 3.55x5.94mm
- LCD type: STN, Positive, Reflective
- Viewing direction: 6 O'Clock
| Specifications | |
|---|---|
| Character Count x Line | 8 x 2 |
| Logic Voltage | 3V to 5V |
| Font Set | English, Euro, Japanese |
| Display Mode | Reflective |
| Character Size | 2.96mm |
| LCD Display Type | Character |
| Operating Temperature Min | -20°C |
| Operating Temperature Max | 70°C |
| Display Construction | Module |
| Backlighting Colour | Yellow / Green LED |
| Country of Origin: | China |
