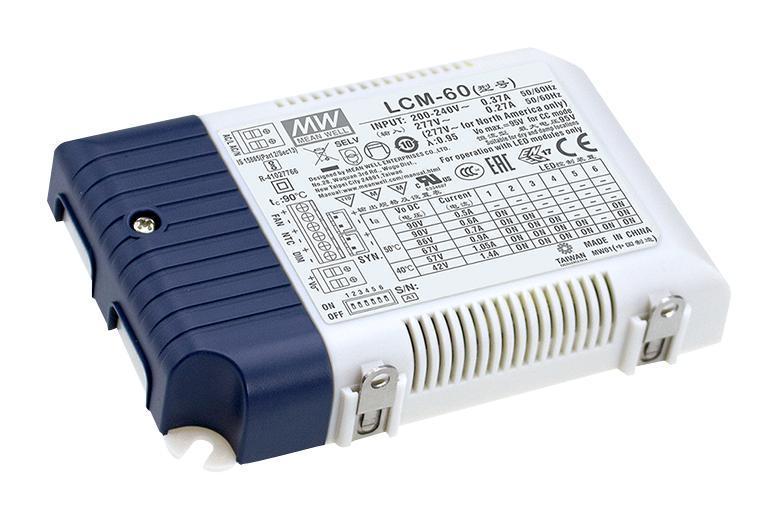

LED Driver, 42V, 1.4A, 60.3W - LCM-60DA
LED Driver, 42V, 1.4A, 60.3W - LCM-60DA
Regular price
£70.19 GBP
Regular price
Sale price
£70.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
LCM-60DA series is a 60W AC/DC constant current mode output LED driver featuring the multiple levels selectable by dip switch and the DALI interface with the compliance to IEC62386-207. LCM-60DA operates from 180-295VAC and offers different current levels ranging between 500mA and 1.4A. Thanks to the high efficiency up to 92%, with the fanless design, the entire series is able to operate for -30°C to +90°C case temperature under free air convection. In addition, LCM-60DA is equipped with push dimming and synchronization so as to provide the optimal design flexibility for LED lighting system.
Features
- Constant current mode output with multiple levels selectable by dip switch
- Rastic housing with Class II design
- Built-in active PEG function
- Standby power consumption <0.5W
- Functions: DALI interface (logarithm or linear dimming curve selectable), push dimming
- Synchronization up to 10 units
- 3-years warranty
| Specifications | |
|---|---|
| Output Power Max | 60.3W |
| Output Voltage Max | 42VDC |
| Output Current | 1.4A |
| LED Driver Mode | Constant Current |
| Input Voltage Min | 180V |
| Input Voltage Max | 295V |
| Product Range | LCM-60DA |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
| Country of Origin: | China |
