Maker Pi RP2040 Microcontroller Development Board - 104326
Maker Pi RP2040 Microcontroller Development Board - 104326
Regular price
£18.19 GBP
Regular price
Sale price
£18.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

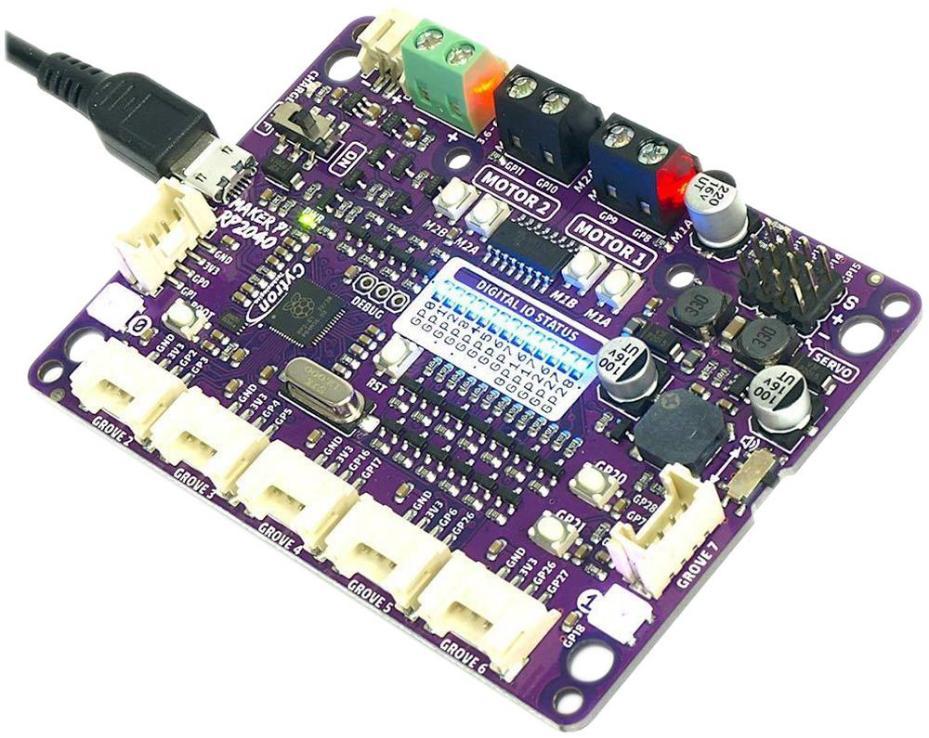

The Maker Pi RP2040 is a comprehensive robot controller board with embedded RP2040 microcontroller; features a 2 channel DC motor driver, 4x servo motor ports and 7x Grove I/O connectors for external sensors and components.
Features
- Powered by the RP2040 chip
- ARM Cortex M0+ running up to 133Mhz
- 264KB RAM, 2MB flash memory
- Integrated DC motor driver can control two DC motors or a single stepper motor
- 13x Status LEDs for GPIO pins
- 2x RGB LEDs
- 2x Push buttons and piezo buzzer
- Micro USB for power & data connection
- Automatic power selection: USB, built-in LiPo/Li-ion charger or Vin (3.6-6V)
- Built-in power on/off switch
- Preloaded with CircuitPython
- Board is fitted with 4x 4.8mm mounting holes and 6x M3 screw holes
- Dimensions (HxWxD): 13x88x64mm
| Specifications | |
|---|---|
| Silicon Manufacturer | Raspberry Pi |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-M0+ |
| Silicon Core Number | RP2040 |
| Country of Origin: | China |
