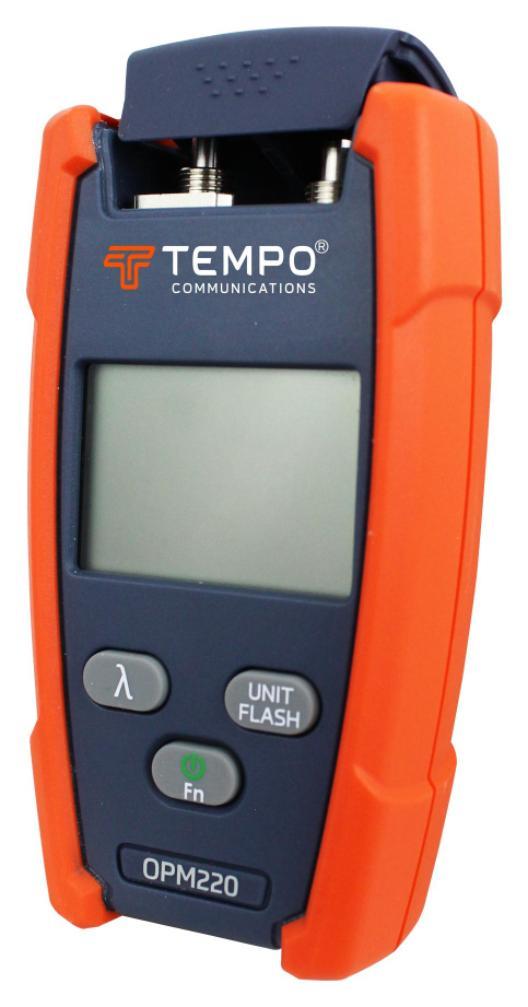

Micro Optical Power Meter, High Power - OPM220
Micro Optical Power Meter, High Power - OPM220
Regular price
£327.39 GBP
Regular price
Sale price
£327.39 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Micro optical power meter (OPM220) is a standard and high-power micro optical power meter. Absolute and referenced power measurements ensure fast and accurate loss budget and insertion loss measurements. When placing tones on the fibre using a Tempo Communications source provides the optical power meter will definitively identify fibre optic cables.
Features
- Measure optical power (dB, dBm & mW)
- Tone and probe fibre networks at 270Hz, 1kHz and 2kHz
- Integrated Visual Fault Locator
- Integrated Flash Light
- InGaAs detector for Maximum Sensitivity
- Calibrated wavelengths 850nm, 1300nm, 1310nm, 1490nm, 1550nm & 1625nm
- Universal bulkheads
- Compatible with singlemode and multimode networks
- Auto off or continuous on operation
- AA battery operation
| Specifications | |
|---|---|
| Photodetector Type | Indium Gallium Arsenide |
| Operating Range dBm Min | -50dBm |
| Operating Range dBm Max | 26dBm |
| Product Range | OPM Series |
| Product Contents: | Micro OPM with VFL, Lanyard, Instruction sheet. |
| Country of Origin: | China |
