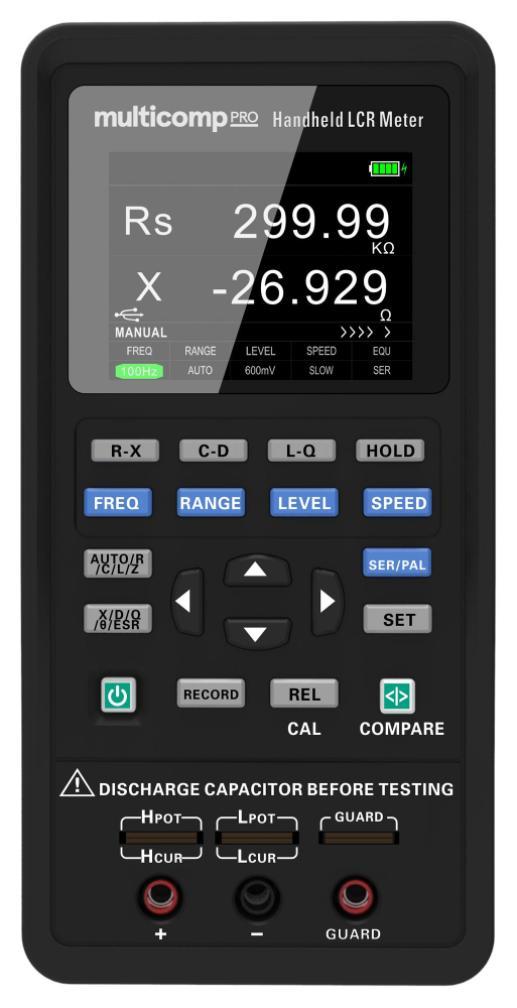

Mini LCR Meter, 40kHz - MP700433
Mini LCR Meter, 40kHz - MP700433
Regular price
£138.59 GBP
Regular price
Sale price
£138.59 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
MP700433 is a handheld LCR meter, used to measure the parameters of a component such as inductance, capacitance and resistance. It features small in size, powered by a 5V lithium battery which can meet the requirements of desktop LCR meters and also be used for flow measurement and handheld measurement.
Features
- Test frequency of 100hz, 120hz, 400hz, 1Khz, 4Khz, 10Khz and 40Khz
- Test level of 0.6Vrms
- 2.8" TFT LCD screen
- HD display with dual display of measurement data
- Supports data record analysis
- Supports PC connectivity makes easy to control and remote measurement
- 3 terminal/5 terminal switch test lead
- High/intermediate/low speed switch
- Supports manual & auto switch, easy to perform quick measurements
- LCR adopted rechargeable design
- Built-in stand
| Specifications | |
|---|---|
| LCR Type | Hand Held |
| Test Frequency Max | 40kHz |
| Inductance Measure Max | 2kH |
| Capacitance Measure Max | 20000pF |
| Resistance Measure Max | 20Mohm |
| Product Range | Multicomp Pro LCR Meters |
| Product Contents: | LCR meter, Handbag, Short circuit card, 1pair red & black alligator clip cable, Type C & USB cable. |
| Country of Origin: | China |
