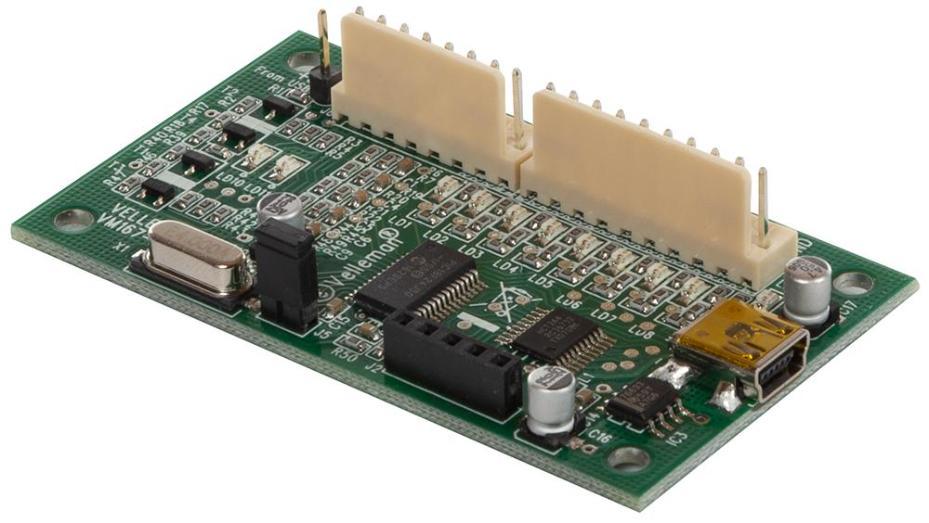

Mini USB Interface Board - WMI167
Mini USB Interface Board - WMI167
Regular price
£35.09 GBP
Regular price
Sale price
£35.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Mini USB Interface Board is a compact USB controlled I/O board that allows you to add a USB interface to existing equipment or use your PC to connect with other devices. The board provides 15x inputs/outputs; including analogue, digital and PWM connections.
Features
- All communication routines are contained in a DLL (available to download)
- Command Execution Time: 4ms (read), 1ms (write)
- 5x 10-bit Analogue inputs
- 8x 5V Digital inputs/outputs
- 2x 8-bit 5V PWM outputs
- Onboard LEDs for digital I/O and PWM
- 32-bit Pulse counter with up to 1MHz input frequency
- Up to two cards can be used simultaneously to expand the number of inputs/outputs
- High speed USB 2.0 connection (leads included)
- PCB Dimensions: 40x68mm
| Specifications | |
|---|---|
| Country of Origin: | Belgium |
