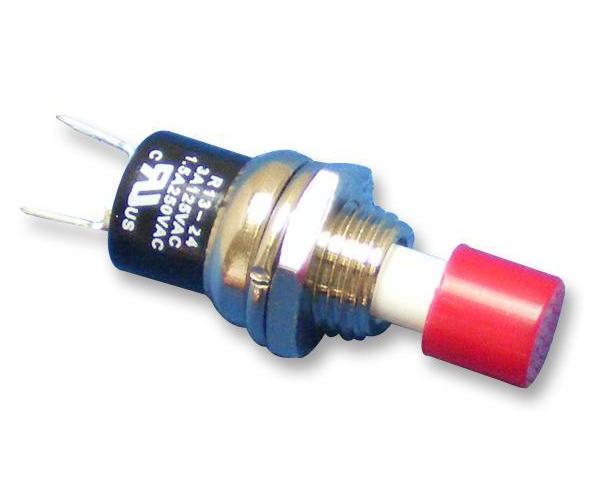

Miniature Push Button Switch, Momentary, SPST-NO, 7.2mm - R13-24AL-05-BR
Miniature Push Button Switch, Momentary, SPST-NO, 7.2mm - R13-24AL-05-BR
Regular price
£2.29 GBP
Regular price
Sale price
£2.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Multicomp R13-24 series pushbutton switches are mechanically operated and available in different switch operations.
Product Info
- Two pin momentary action
- Current rating of 3A at 125V and 1.5A at 250VAC
- Insulation resistance of 100Mohm min at DC 500V
- Dielectric strength of 1000VAC
- Red ABS button with Ø10 x 8.5mm size and black PBT housing
- Multicomp products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
| Details | |
|---|---|
| Pushbutton Switch Type | Standard |
| Panel Cutout Diameter | 7.2mm |
| Contact Configuration | SPST-NO |
| Switch Operation | Off-(On) |
| Pushbutton Actuator Style | Round |
| Actuator / Cap Colour | Red |
| Contact Current AC Max | 3A |
| Contact Voltage VAC | 125V |
| Switch Mounting | Panel Mount |
| Switch Terminals | Solder Lug |
| Illumination Colour | Non Illuminated |
| Country of Origin: | Taiwan |
