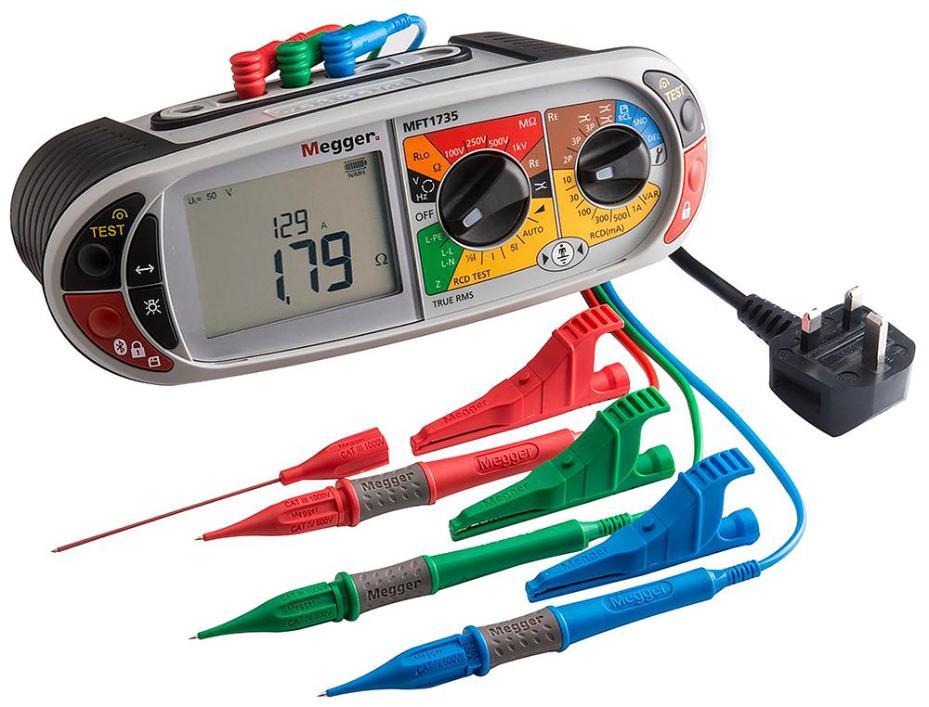

Multifunction Electrical Installation Tester, IP54 - MFT1735
Multifunction Electrical Installation Tester, IP54 - MFT1735
Regular price
£1,615.69 GBP
Regular price
Sale price
£1,615.69 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The MFT1735 instrument is designed for testing low voltage electrical installations to BS 7671. It provides all the tests required to complete the necessary electrical certification for industrial, commercial and domestic fixed wiring installations.
Features
- System voltage and frequency measurement (TRMS)
- Insulation test at 100V, 250V, 500V and 1,000V, including input protection against live circuits up to 600V, even when insulation test is locked-on
- Continuity resistance at 200mA or 15mA
- Automatic - no need to press TEST so leaving both
- hands free to hold probes
- Resistance range up to 100kR
- With fast continuity buzzer and selectable thresholds
- Non-trip loop test
- Earth loop test
- 2 and 3-wire non-trip range
- 2-wire Hi current including phase to phase
- Prospective fault current measurement, up to 20kA
- RCD testing includes: Type AC, A, S, B and programmable RCDs, 1/2xI, 1xI and 5xI, 3-phase RCDs, fast ramp test, auto-test routine, fault (touch) voltage display
- Earth testing: 2-pole, 3-pole, ART, stakeless techniques
- IP54 rated
| Specifications | |
|---|---|
| Product Range | Megger MFT17x1 |
| Voltage Measure AC Max | 600V |
| Insulation Resistance Min | 10kohm |
| Insulation Resistance Max | 0.999Gohm |
| Country of Origin: | Great Britain |
