OLED Display Module, 20x4, White - WINSTAR

OLED Display Module, 20x4, White - WINSTAR

£56.19 GBP
£56.19 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

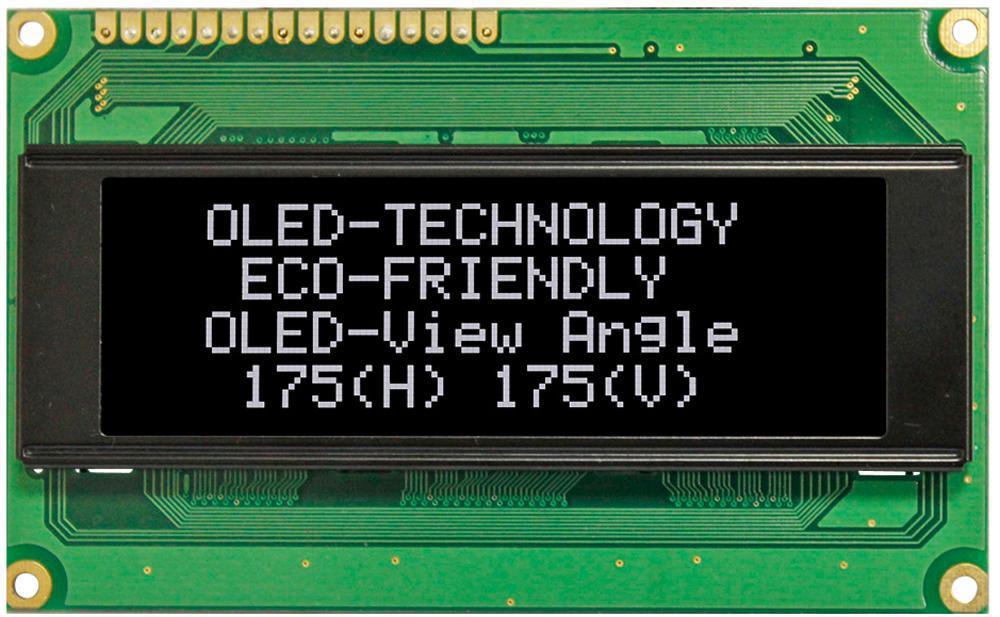

The WEH002004AWPP5N00000 is white 20x4 OLED display.

Features

  • 20x4 Character OLED Display
  • Built-in Controller WS0010
  • 5V Power supply
  • 1/16 duty cycle
  • Interface: 6800
  • Module dimension: 98x60x10mm
  • Active area: 70.16x20.95mm
  • Pixel Size: 0.54x0.55mm
  • Dot pitch: 0.59x0.60mm
  • Character size: 2.9x4.75mm
  • Character pitch: 3.54x5.4mm

Specifications
Character Count x Line 20 x 4
Logic Voltage 5V
Font Set English, Euro, Japanese
Character Size 2.9mm
Operating Temperature Min -40°C
Operating Temperature Max 80°C
Display Construction COB
Country of Origin: China

EAN:
Manufacturer Part Number:
