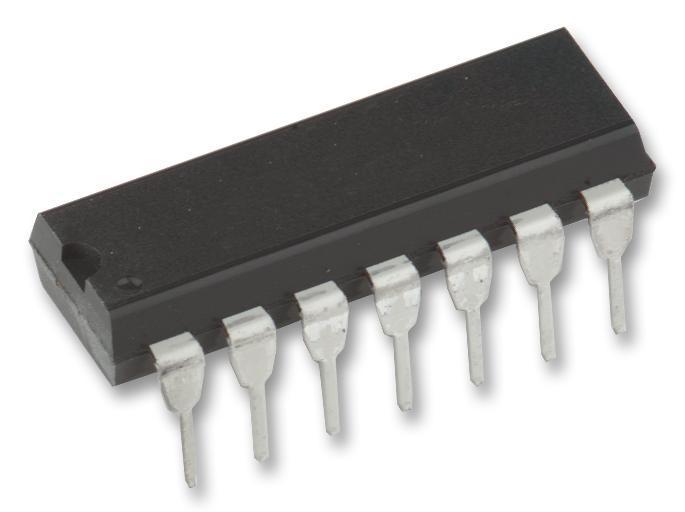

Op Amp, Quad - TL074IN

Op Amp, Quad - TL074IN

£3.19 GBP
£3.19 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

The TL074IN is a quad low-noise JFET-input general-purpose Operational Amplifier incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The device features high slew rates, low-input bias and offset currents and low offset-voltage temperature coefficient. The low harmonic distortion and low noise make the TL07xseries ideally suited for high-fidelity applications.

Features

  • Low power consumption
  • Wide common-mode and differential voltage ranges
  • Low input bias and offset currents
  • Output short-circuit protection
  • High-input impedance - JFET input stage
  • Internal frequency compensation
  • Latch-up-free operation
  • Common-mode input voltage range includes VCC+
  • 0.003% Typical low total harmonic distortion
  • Vn=18nV/√Hz at f=1kHz Typical low noise

Specifications
No. of Amplifiers 4 Amplifier
Bandwidth 3MHz
Slew Rate 13V/μs
Supply Voltage Range 7V to 36V
Amplifier Case Style DIP
No. of Pins 14Pins
Operating Temperature Min -40°C
Operating Temperature Max 85°C
Country of Origin: Mexico

EAN:
Manufacturer Part Number:
