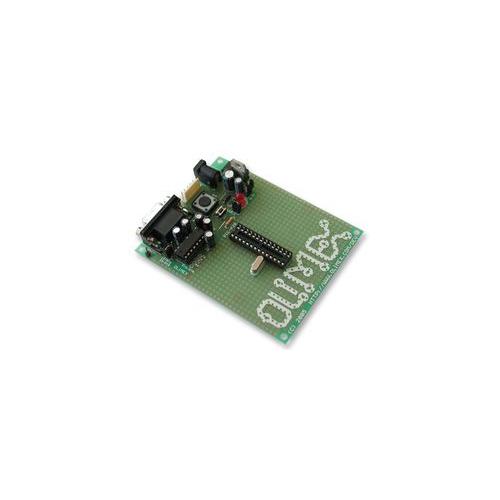

PIC-P28-20MHZ Olimex Kit , Dev Board For 28-Pin Picmicro
PIC-P28-20MHZ Olimex Kit , Dev Board For 28-Pin Picmicro
Regular price
£18.39 GBP
Regular price
Sale price
£18.39 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
The PIC-P28-20-MHZ is a development prototype board for 28pin PIC microcontrollers. With this board you can develop and prototype any 28pin PIC microcontrollers. The RS 232 driver on board allows easy connection with pc or other embedded hardware. The board have User button and status LED. The bridge rectifier allow this board to be powered with both AC and DC power supply adapters and also supports both 3V low power and normal 5V operation. This board has a ICSP/ICD connector for programming with PIC-MCP-USB and PIC-MCP or PIC-PG1,PIC-PG2, PIC-PG3, PIC-PG4 programmers and debugging with PIC-ICD2, PIC-ICD-POCKET, PIC-ICD2-TINY.
Product Features
- RS 232 Tx, Rx interface with MAX232 IC on socket
- DIL18 microcontroller socket
- Quartz crystal 20Mhz
- LED to RB3 through jumper
- User button, reset button and power plug in jack
- Selectable 3.3V/5V power supply voltage regulator
- Extension slot on every uC pin
- Board size available with 100mm x 80mm
- GND and Vcc bus
- Four mounting holes 3.3mm
Product Details
| Core Architecture: | PIC |
| Core Sub-Architecture: | PIC16 |
| Features: | RS232 Tx/Rx Interface, Power Plug-In Jack |
| Kit Contents: | Board |
| Kit Features: | Develop and Prototype w/ 28-pin PIC MCU, ICSP/ICD Connector for Programming, RS232 Driver On-board |
| No. of Bits: | 8bit |
| Silicon Core Number: | PIC16F87x |
| Silicon Family Name: | PIC16F87x |
| Silicon Manufacturer: | Microchip |
