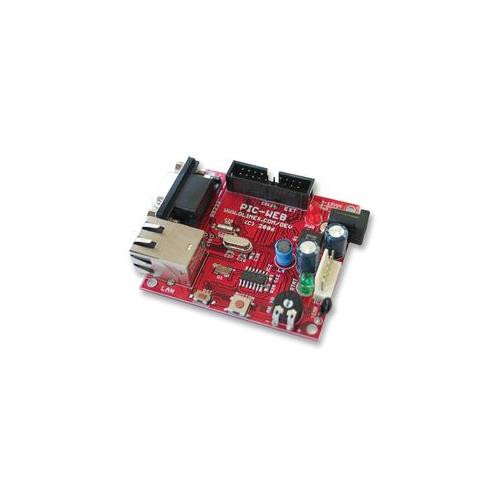

PIC-WEB Olimex Kit , Dev , Pic18F452 Tcp/Ip Board

The PIC-WEB is a compact development board which is supported by Microchips open source TCP IP stack AN833. The board is designed with 64pin high performance, 1Mbit flash PIC18F67J60 microcontroller with Ethernet and supports SLIP, ARP, IP, ICMP, TCP, UDP, HTTP, DHCP, FTP. The Microchip stack is written very modular and flexible and you can enable or disable modules and supports dynamic web pages which give you the possibility to control all PIC resources remotely via FTP, HTTP, UDP, TCP etc. With this board you can implement web and ftp server, send e-mails and almost everything what the big servers do. The on board 1Mbit serial flash is available for data storage. This board is designed to have Web page of no more than 128kB. The potential of the board is to generate a fluid communication between some specific sensors or actuators across a TCP/IP net including the controls of it.

• PIC18F67J60 microcontroller with Ethernet and 1Mbit memory for code
• Ambit on board serial flash for web pages storage
• Mini ICSP/ICD connector for programming with PIC-ICD2-POCKET or PIC-KIT3
• Analogue trimmer potentiometer
• Thermistor for temperature monitoring
• UEXT connector
• RS 232 driver and connector
• Complete web server and TCP IP stack support as per Microchip's open source TCP-IP stack
• Power plug in jack for 9V to 12V DC power supply
• Extension header to connect to other boards
