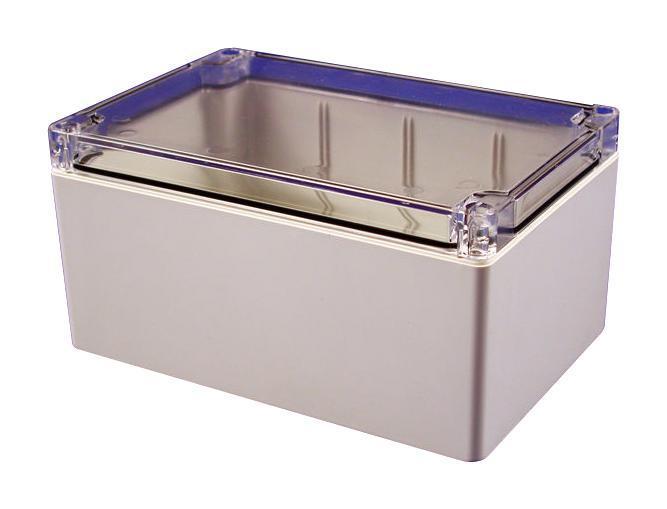

Polycarbonate Enclosure, 119x89x180mm, Grey, IP68 - 1554T2GYCL
Polycarbonate Enclosure, 119x89x180mm, Grey, IP68 - 1554T2GYCL
Regular price
£34.29 GBP
Regular price
Sale price
£34.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Enclosure suitable for mounting printed circuit boards or DIN rail mounted components.
Features
- UV stabilized for outdoor use, carries a UL94
- 5VA rating, while clear lids carry a UL94V-0 rating
- cUL and UL 508A listed (File # E65324)
- Gasketed lid with two piece 'tongue and groove' construction provides protection against access of oil, dust and water
- Gasket is one piece made from high temperature, U.L. listed silicone
- Polycarb versions are designed to meet NEMA Type 4, 4X, 6, 6P, 12, and 13 ratings which meet and exceed IP ratings up to and including IP68
- Lid is secured with included M4 stainless steel machine screws which are threaded into integral stainless steel bushings for repetitive assembly and disassembly
- All hardware is stainless steel to avoid corrosion caused by dissimilar metals
- Lid screws are self captivating (lid holes are threaded with the first installation of lid screws)
- Internal features are maximized for mounting options
| Specifications | |
|---|---|
| Enclosure Type | Small |
| Enclosure Material | Polycarbonate |
| External Height - Metric | 89mm |
| External Width - Metric | 119mm |
| External Depth - Metric | 180mm |
| IP Rating | IP68 |
| Body Colour | Grey, Transparent |
| NEMA Rating | NEMA 4, 4X, 6, 6P, 12, 13 |
| External Height - Imperial | 3.5" |
| External Width - Imperial | 4.69" |
| External Depth - Imperial | 7.09" |
| Product Range | 1554 Series |
| Country of Origin: | Canada |
