Polycarbonate Enclosure, 280x130x280mm, Grey, IP67 - EKOE 130 G ENCLOSURE
Polycarbonate Enclosure, 280x130x280mm, Grey, IP67 - EKOE 130 G ENCLOSURE
Regular price
£93.39 GBP
Regular price
Sale price
£93.39 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

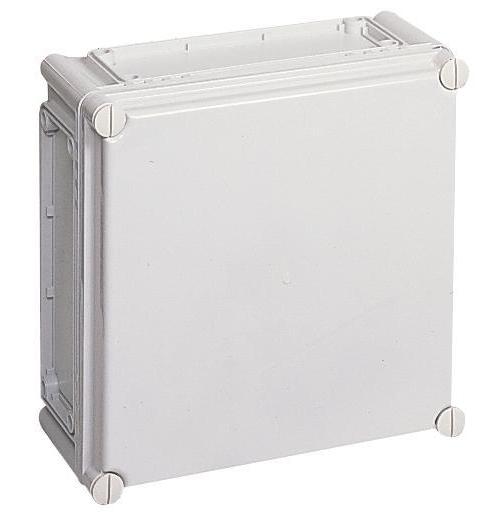

The EKOE 130 G is a Wall-mount Enclosure made of PC (polycarbonate). This enclosure comes with a flanged base with screw for mounting plate or DIN-rail, cover with PUR gasket, polyamide cover screw, polyurethane gasket and grey cover screw.
Features
- -40 to 120°C Short term temperature range
- Electrical insulated
- UL746C5V Flammability rating
| Specifications | |
|---|---|
| Enclosure Type | Wall Mount |
| Enclosure Material | Polycarbonate |
| External Height - Metric | 280mm |
| External Width - Metric | 280mm |
| External Depth - Metric | 130mm |
| IP Rating | IP66, IP67 |
| Body Colour | Grey |
| NEMA Rating | NEMA 1, 3, 3S, 4, 4X, 6, 6P, 12 |
| External Height - Imperial | 11.02" |
| External Width - Imperial | 11.02" |
| External Depth - Imperial | 5.12" |
| Product Range | EK Series |
| Country of Origin: | Finland |
