Polycarbonate Enclosure, 52x50x35mm, Grey, IP66 - 13945501
Polycarbonate Enclosure, 52x50x35mm, Grey, IP66 - 13945501
Regular price
£20.49 GBP
Regular price
Sale price
£20.49 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

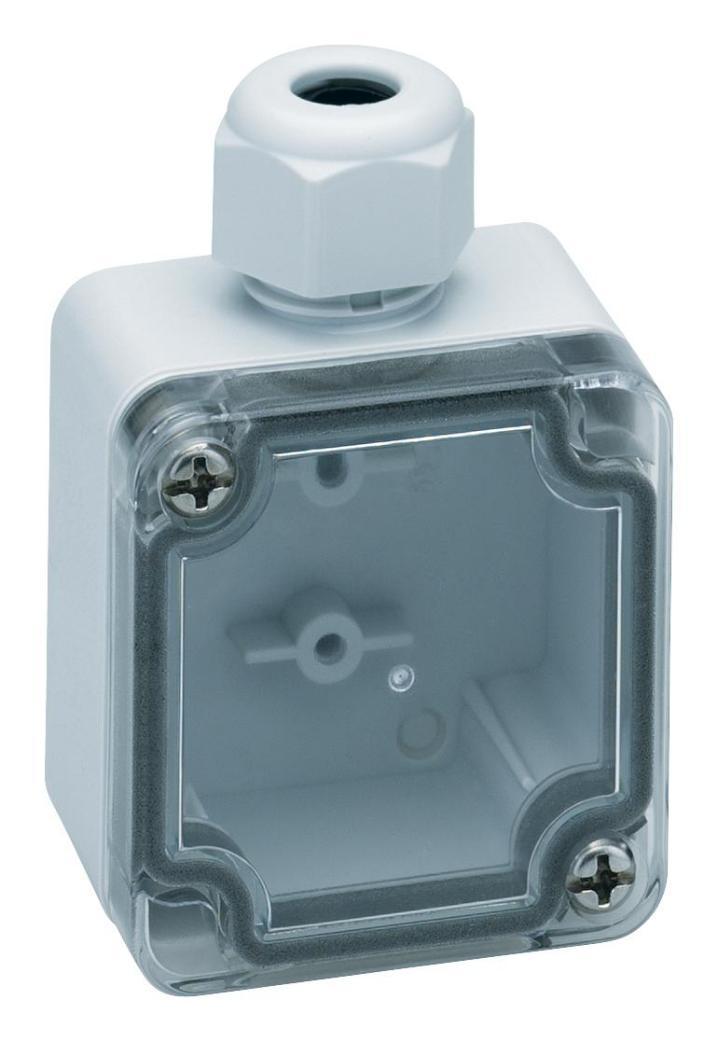

The 13945501 is a Multipurpose Enclosure with integrated cable gland (seal range 5 to 10mm). It has grey fibreglass reinforced polycarbonate base and transparent polycarbonate cover.
Features
- Industrial quality
- Customizable
- Polyurethane sealing
- Stainless steel V2A cover screws
- -35 to 60°C Ambient temperature range
- 95% Maximum relative humidity at 25°C (short term)
- 50% Maximum relative humidity at 40°C
- 690V Rated insulation voltage AC
- 1000V Rated insulation voltage DC
- Halogen-free
- Heavy metals-free
- PVC-free
- Silicone-free
- Weatherproof
- Fitted for outdoor application
| Specifications | |
|---|---|
| Enclosure Type | Multipurpose |
| Enclosure Material | Polycarbonate, Glass Fibre Reinforced |
| External Height - Metric | 35mm |
| External Width - Metric | 52mm |
| External Depth - Metric | 50mm |
| IP Rating | IP66 |
| Body Colour | Grey, Transparent |
| External Height - Imperial | 1.38" |
| External Width - Imperial | 2.05" |
| External Depth - Imperial | 1.97" |
| Country of Origin: | Germany |
