Power & Harmonics Analyser - HA1600A
Power & Harmonics Analyser - HA1600A
Regular price
£3,041.29 GBP
Regular price
Sale price
£3,041.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

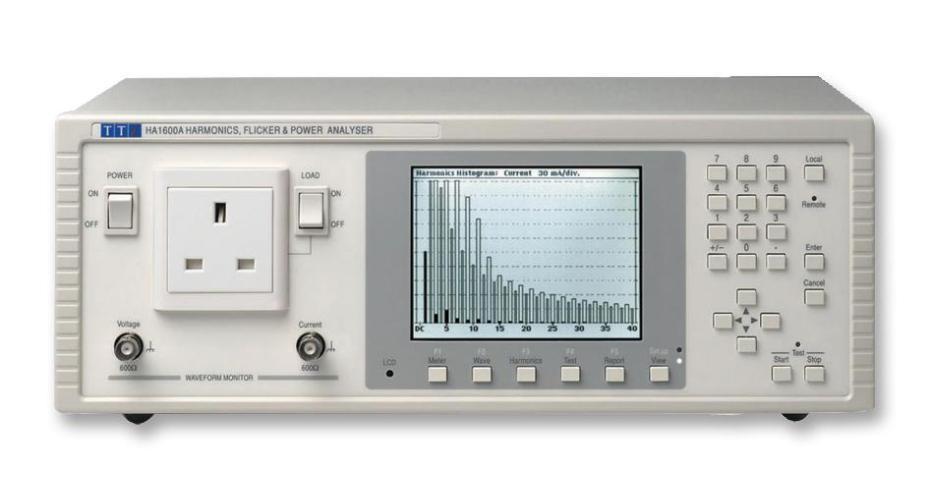

The HA1600A is a fast, easy to use mains and harmonics analyser with a large and high resolution graphical display, capable of continuous real-time analysis. The HA1600A is intended primarily as a dedicated harmonics and flicker analyser for compliance quality measurements, but it can also be used as a general purpose mains analyser.
Features
- Measures power, voltage, current, phase angle etc.
- Tabular and histogram display of harmonics
- Voltage and current waveform displays
- Continuous analysis with real-time graphical update
- Compliance quality measurements to EN61000-3-2/-3
- Wide range of national power connectors available
- Parallel printer and RS232 and USB interfaces
- PC control and documentation software supplied
| Specifications | |
|---|---|
| Analyzer Functions | Current, Phase Angle, Power, Voltage |
| No. of Channels | 1 Channel |
| Voltage Range rms | 115V, 230V |
| Bandwidth | 67Hz |
| External Height | 132mm |
| External Width | 357mm |
| External Depth | 235mm |
| Important Product Info: | In addition, we offer calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details. |
| Country of Origin: | Great Britain |
