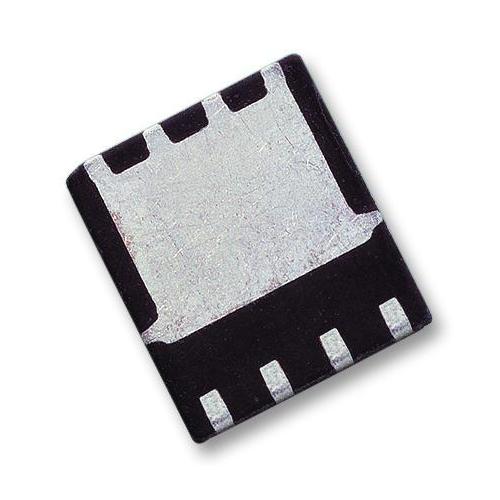

Power MOSFET, P Channel, 100 V, 28 A, 0.033 ohm, PowerPAK SO, Surface Mount - SI7489DP-T1-GE3

Power MOSFET, P Channel, 100 V, 28 A, 0.033 ohm, PowerPAK SO, Surface Mount - SI7489DP-T1-GE3

£3.39 GBP
£3.39 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

The SI7489DP-T1-GE3 is a -100V P-channel TrenchFET® Power MOSFET. The P-channel MOSFET for switching applications are now available with die on resistances around 1mR and with the capability to handle 85A.

Features

  • Halogen-free according to IEC 61249-2-21 definition

Specifications
Transistor Polarity P Channel
Drain Source Voltage Vds 100V
Continuous Drain Current Id 28A
On Resistance Rds(on) 0.033ohm
Transistor Case Style PowerPAK SO
Transistor Mounting Surface Mount
Rds(on) Test Voltage Vgs 10V
Threshold Voltage Vgs 3V
Power Dissipation Pd 83W
No. of Pins 8Pins
Operating Temperature Max 150°C
Country of Origin: China

EAN:
Manufacturer Part Number:
