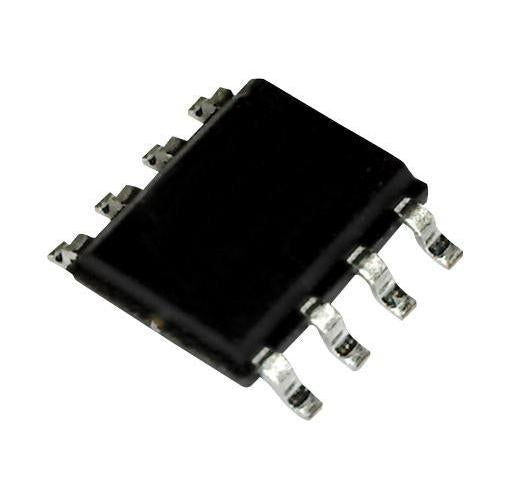

Precision Low Noise Voltage Reference, 2.5V, SOIC-8 - REF5025AIDG4 .
Precision Low Noise Voltage Reference, 2.5V, SOIC-8 - REF5025AIDG4 .
Regular price
£4.79 GBP
Regular price
Sale price
£4.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The REF5025AIDG4 is a low-noise, low-drift, very high precision Voltage Reference, capable of both sinking and sourcing and are very robust with regard to line and load changes. Excellent temperature drift (3ppm/°C) and high accuracy (0.05%) are achieved using proprietary design techniques. These features, combined with very low noise, make the REF5025AIDG4 ideal for use in high-precision data acquisition systems.
Features
- 3ppm/°C Maximum high-grade low temperature drift
- 0.05% (maximum) High-grade high accuracy
- 3μVPP/V Low noise
- 45ppm/1000-hour (typical) after 1000-hour excellent long-term stability
- ±10mA High output current
- Green product and no Sb/Br
| Specifications | |
|---|---|
| Voltage Reference Type | Series - Fixed |
| Product Range | REF5025 |
| Reference Voltage | 2.5V |
| Initial Accuracy | 0.1% |
| Temperature Coefficient | 3ppm/°C |
| Voltage Reference Case Style | SOIC |
| No. of Pins | 8Pins |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 125°C |
| Country of Origin: | United States |
