Programmable DC Electronic Load, 150V, 40A, 300W - MP710771
Programmable DC Electronic Load, 150V, 40A, 300W - MP710771
Regular price
£491.89 GBP
Regular price
Sale price
£491.89 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

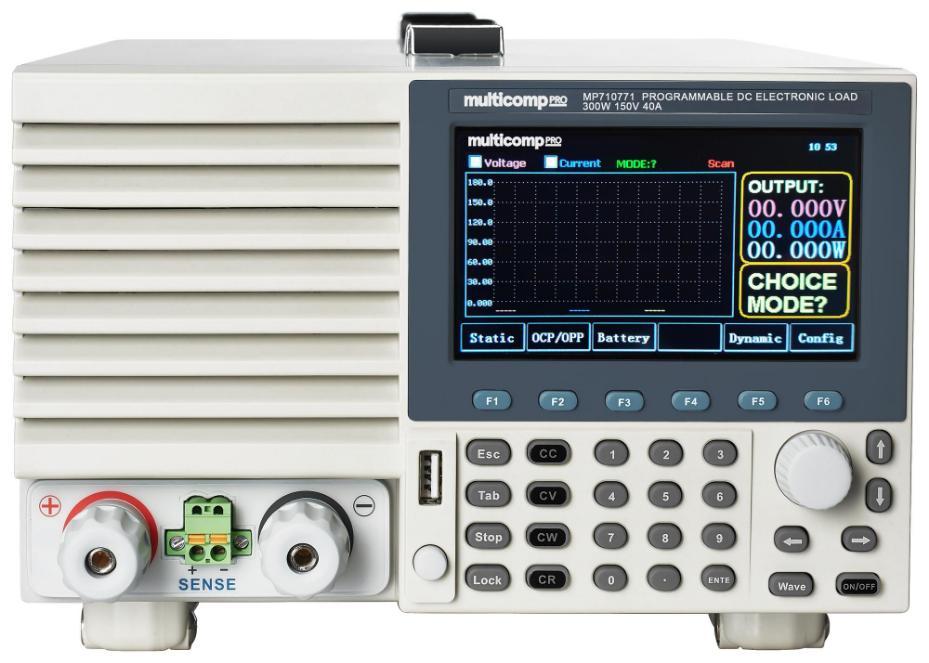

MP710771 from Multicomp Pro is an intelligent programmable single channel DC electronic load with 300W power, 0-150V voltage and 0-40A current input ratings, plus features a liquid crystal LCD panel display interface and an embedded spreadsheet function.
Features
- Dynamic mode - up to 10kHz
- Resolution of voltage and current - 0.1mV/0.1mA
- Waveform display function of voltage and current
- U disk storage of waveform data
- Interface: USB, LAN, RS232 & GPIB
- Four working modes: CV/CC/CR/CP
- Remote sensing function
- Battery test, automatic test, OPP test and OCP test functions
- Storage for 100 sets
- Short-circuit function
- Current monitoring function
- Power off memory function
- Rotary coding switch to make easy operation
- 150Kohm input impedance
- Device dimensions - 215mm x 388mm x 150.5mm
| Specifications | |
|---|---|
| Product Range | Multicomp Pro DC Electronic Loads |
| Power Rating | 300W |
| DC Load Type | Programmable |
| Operating Voltage Min | 0V |
| Operating Voltage Max | 150V |
| Operating Current Max | 40A |
| Manufacturer Warranty | 1 Year |
| Product Contents: | DC electronic load, EU/UK power cords, Software CD, USB cable, RS232 cable. |
| Country of Origin: | China |
